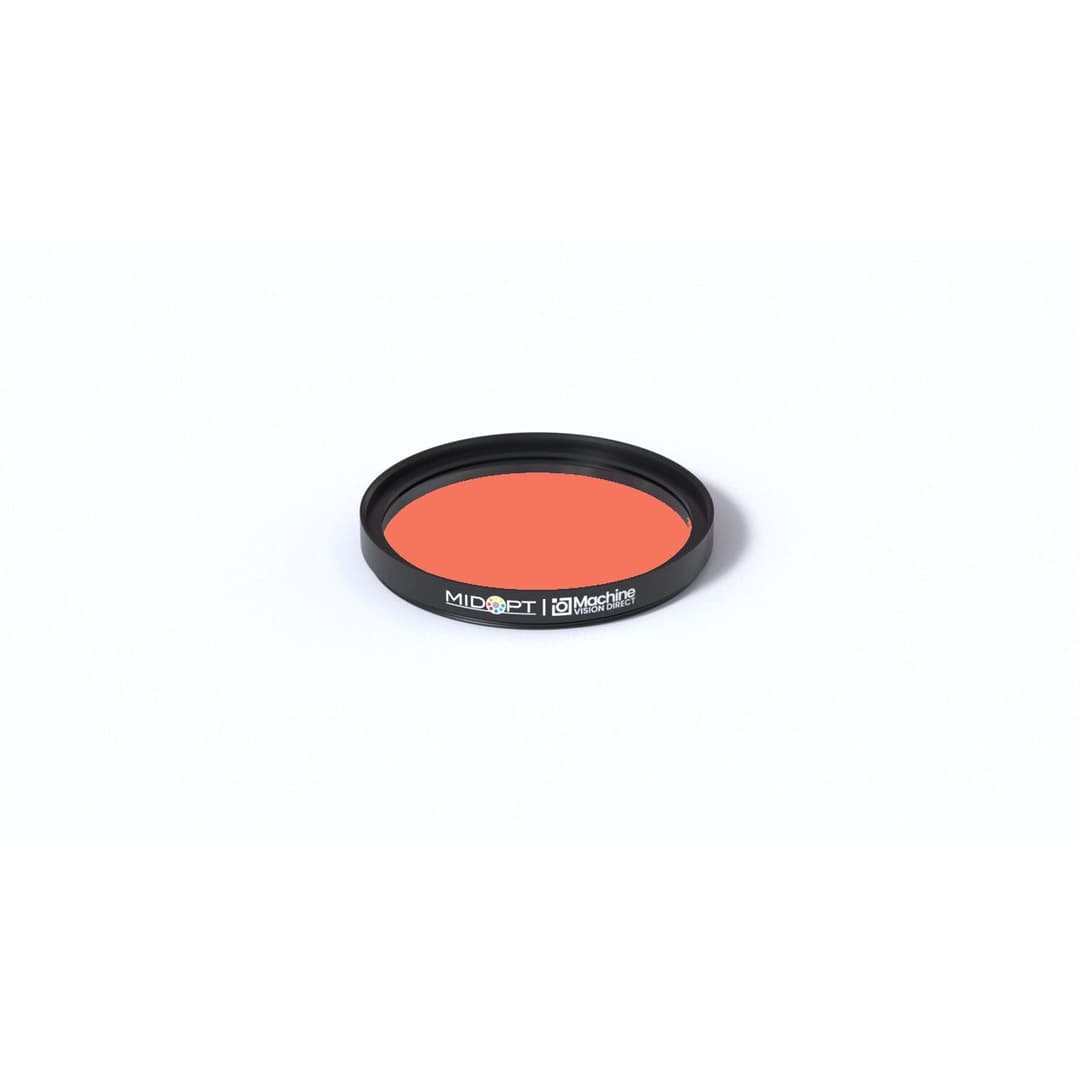

AB555-52 | AB555 Acrylic Absorptive Near-IR/UV-Block Visible Bandpass Filter

The MidOpt AB555-52 AB555 acrylic absorptive bandpass filter passes light in the visible range and blocks all near-infrared, ultraviolet and violet wavelengths. This filter offers excellent laser protection at 1064nm (O.D. 6). Additionally, optical density exceeds 5.0 in the UV (190-375nm), near-IR (760-1070nm) and at 10,600nm. Standard thickness is 3.5mm. The material is a light greenish color in transmission. Sheet stock can be quickly laser cut to a wide variety of custom sizes and shapes, particularly when used as a cover for an enclosure or a laser protective window. Next day shipping is typical. *Not available in 1mm thickness or standard 25.4™ C-Mount option. For filters thicker than 1mm, we offer an alternative mounting solution that has an overall thickness of 5.5mm. This mount can accommodate filters up to 3.5mm thick. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
