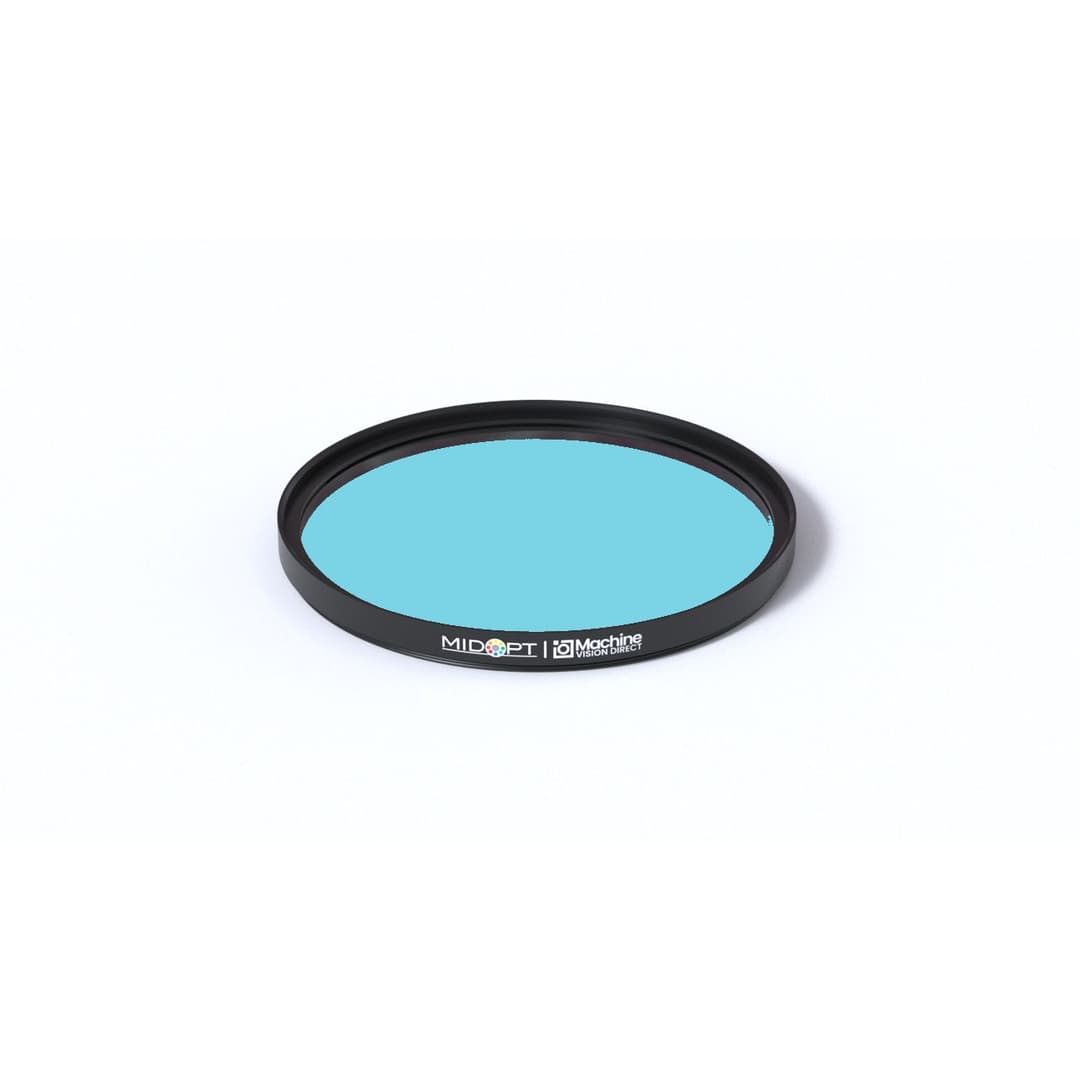

BN485-77 | BN485 (Limited) Narrow Blue Bandpass Filter
Part: BN485-77
Diameter: M77 x P0.75
(Limited)
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 480 nm |
| Useful Range Max | 490 nm |
| Stabledge | Yes |
| FWHM | 35 nm |
| Adhesive Backed | Yes |
| Tolerance | 7 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M77 x P0.75 |
Dimensions
| Length | 3.15 in / 80 mm |
| Width | 3.15 in / 80 mm |
| Height | 0.26 in / 6.5 mm |
| Outer Diameter | 3.15 in / 80 mm |
| Product Weight | 0.16 lbs / 0.072 kg |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Charge Tax | Yes |
Shipping Information
| Shipping Length | 4 in |
| Shipping Width | 4 in |
| Shipping Height | 1 in |
| Shipping Weight | 0.1 lbs |
