Midwest Optical Systems

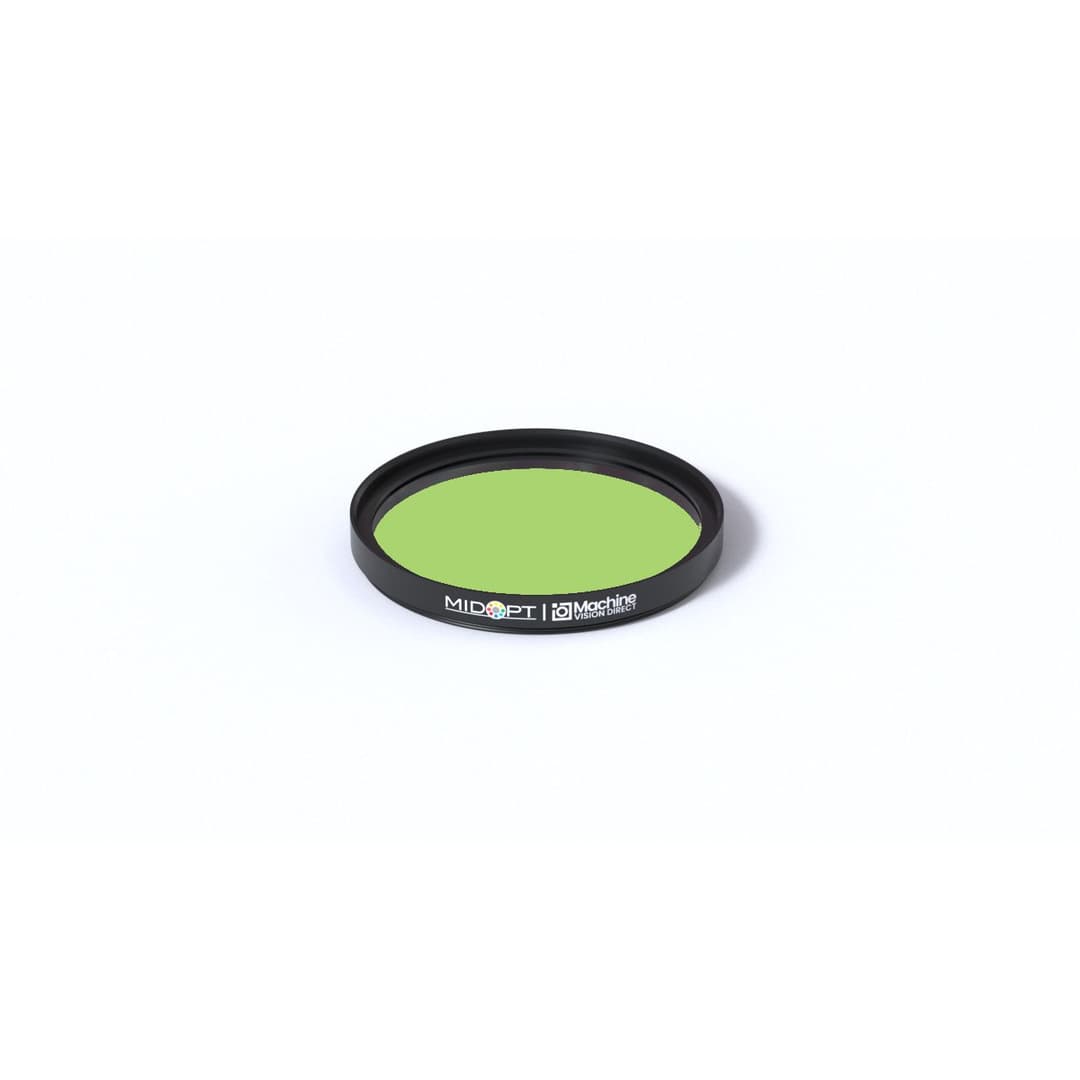

BN535-55 | BN535 Narrow Green Bandpass Filter
Part: BN535-55
Diameter: M55 x P0.75
Commonly used in fluorescence applications, a BN535 filter is suitable for lasers and laser diodes and is less sensitive to angle-of-incidence variations than traditional interference filters. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 520 nm |
| Useful Range Max | 545 nm |
| Stabledge | Yes |
| FWHM | 40 nm |
| Adhesive Backed | Yes |
| Tolerance | 7 % |
| Peak Transmission | ≤ 85 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M55 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $281 |
| Cost | $140.5 |
| Charge Tax | Yes |
