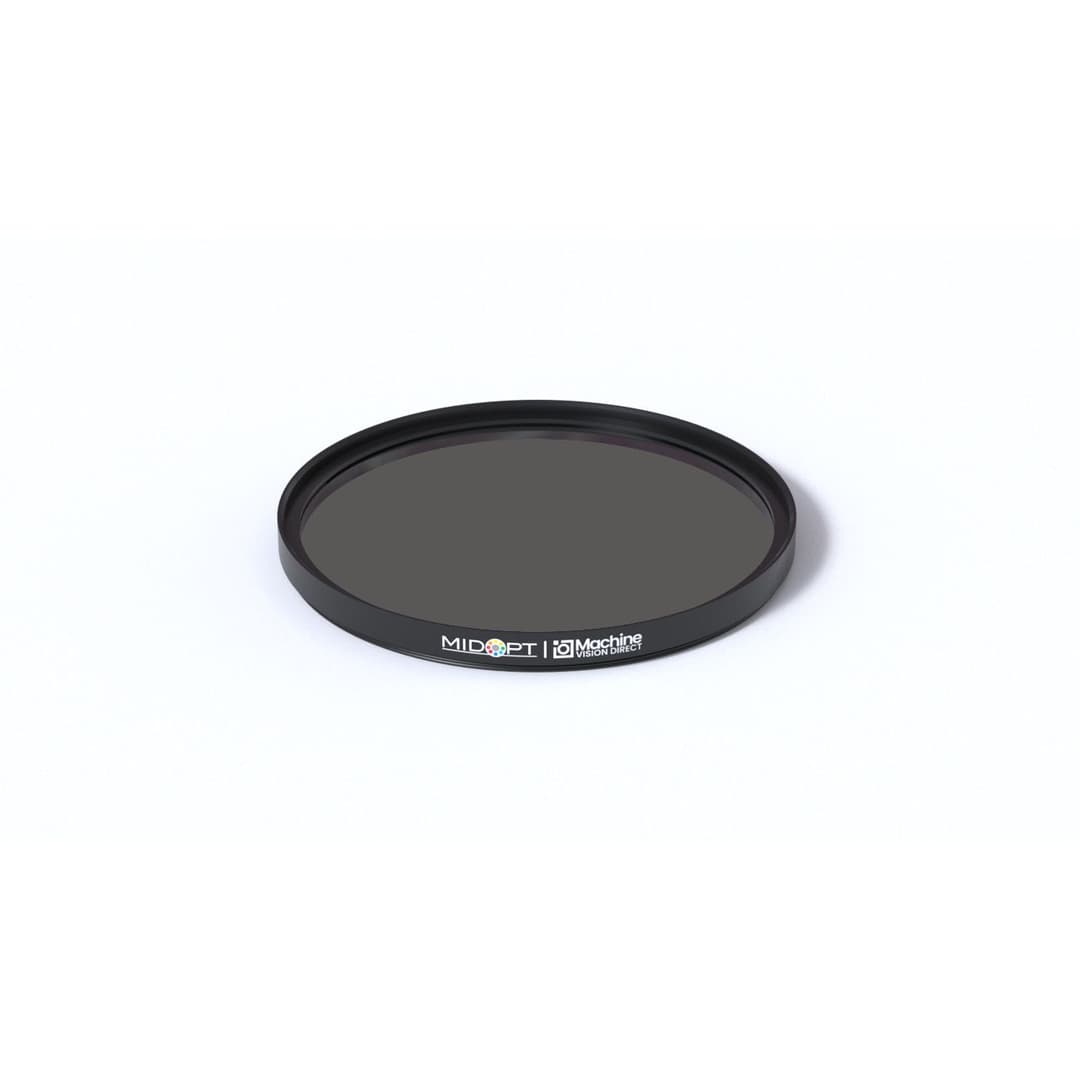

BN810-77 | BN810 Narrow Near-IR Bandpass Filter
Part: BN810-77
Diameter: M77 x P0.75
The MidOpt BN810-77 filter is designed for 810nm laser diode illumination. The narrow-band design is ideal when ambient light is overpowering. It is used in security, traffic control, and Industrial Inspection applications. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 798 nm |
| Useful Range Max | 820 nm |
| Stabledge | Yes |
| FWHM | 50 nm |
| Adhesive Backed | Yes |
| Tolerance | 7 % |
| Peak Transmission | ≤ 85 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M77 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $536 |
| Cost | $268 |
| Charge Tax | Yes |
