Midwest Optical Systems

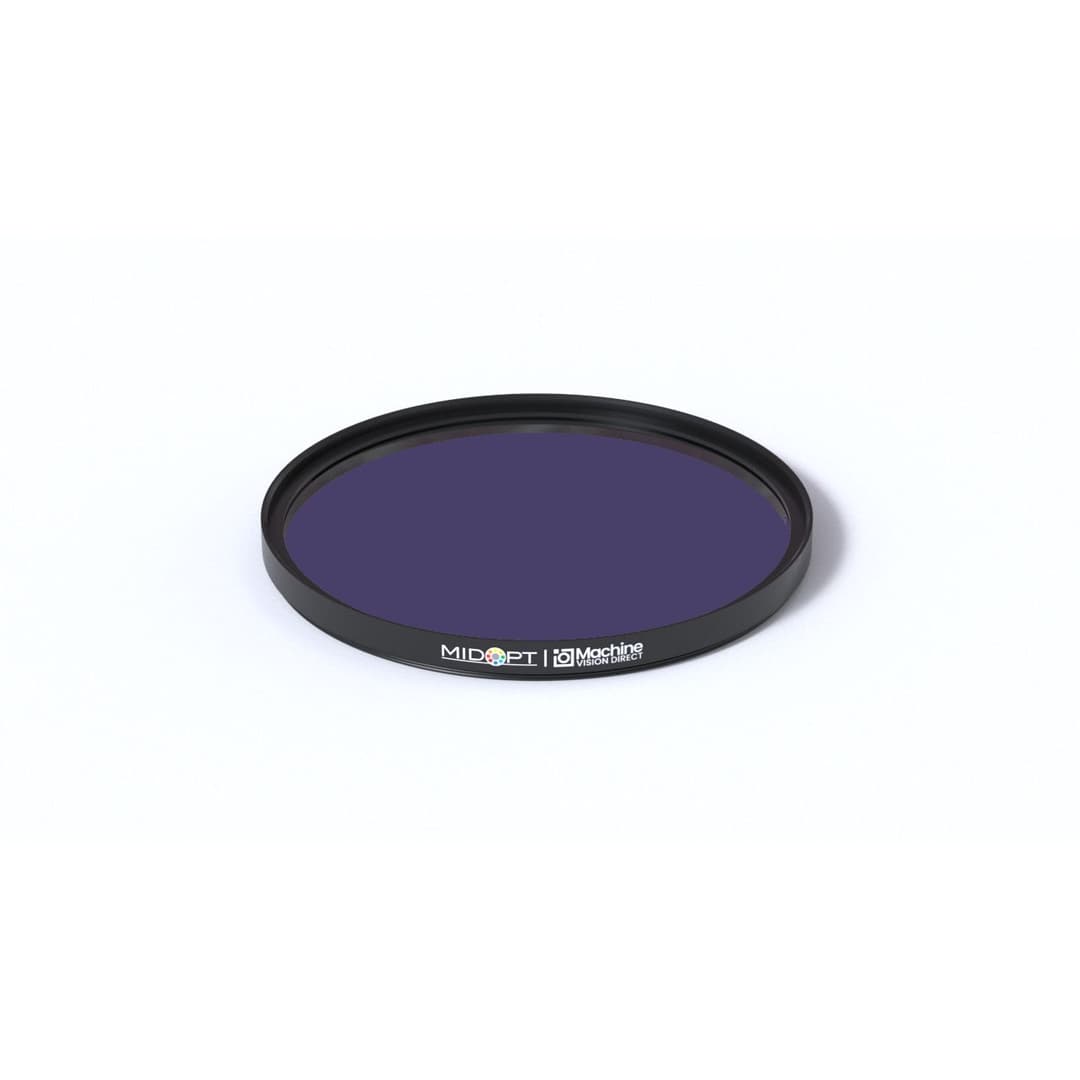

BP365-82 | BP365 Near-UV Bandpass Filter
Part: BP365-82
Diameter: M82 x P0.75
The MidOpt BP365-82 UV Bandpass dichroic filters can be used with all UV LED, UV fluorescent and other UV-producing lighting systems. The BP365 filter material is designed to block visible light and pass UV light, including 395nm and all other popular UV LED wavelengths. It is also useful for near-UV fluorescence imaging, blocking visible light and light from UV-C LED excitation sources, allowing early removal of biofilms (for instance, in disinfection applications or biofouling of ship hulls) through tryptophan fluorescence detection. BP365 substrate material is low-expansion Borofloat, making this filter particularly heat resistant.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 335 nm |
| Useful Range Max | 400 nm |
| Stabledge | Yes |
| FWHM | 80 nm |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 85 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Glass |
| Filter Diameter | M82 x P0.75 |
Dimensions
| Length | 3.35 in / 85 mm |
| Width | 3.35 in / 85 mm |
| Height | 0.26 in / 6.5 mm |
| Outer Diameter | 3.35 in / 85 mm |
| Product Weight | 0.18 lbs / 0.081 kg |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $504 |
| Cost | $252 |
| Charge Tax | Yes |
Shipping Information
| Shipping Length | 4 in |
| Shipping Width | 4 in |
| Shipping Height | 1 in |
| Shipping Weight | 0.1 lbs |
