Midwest Optical Systems

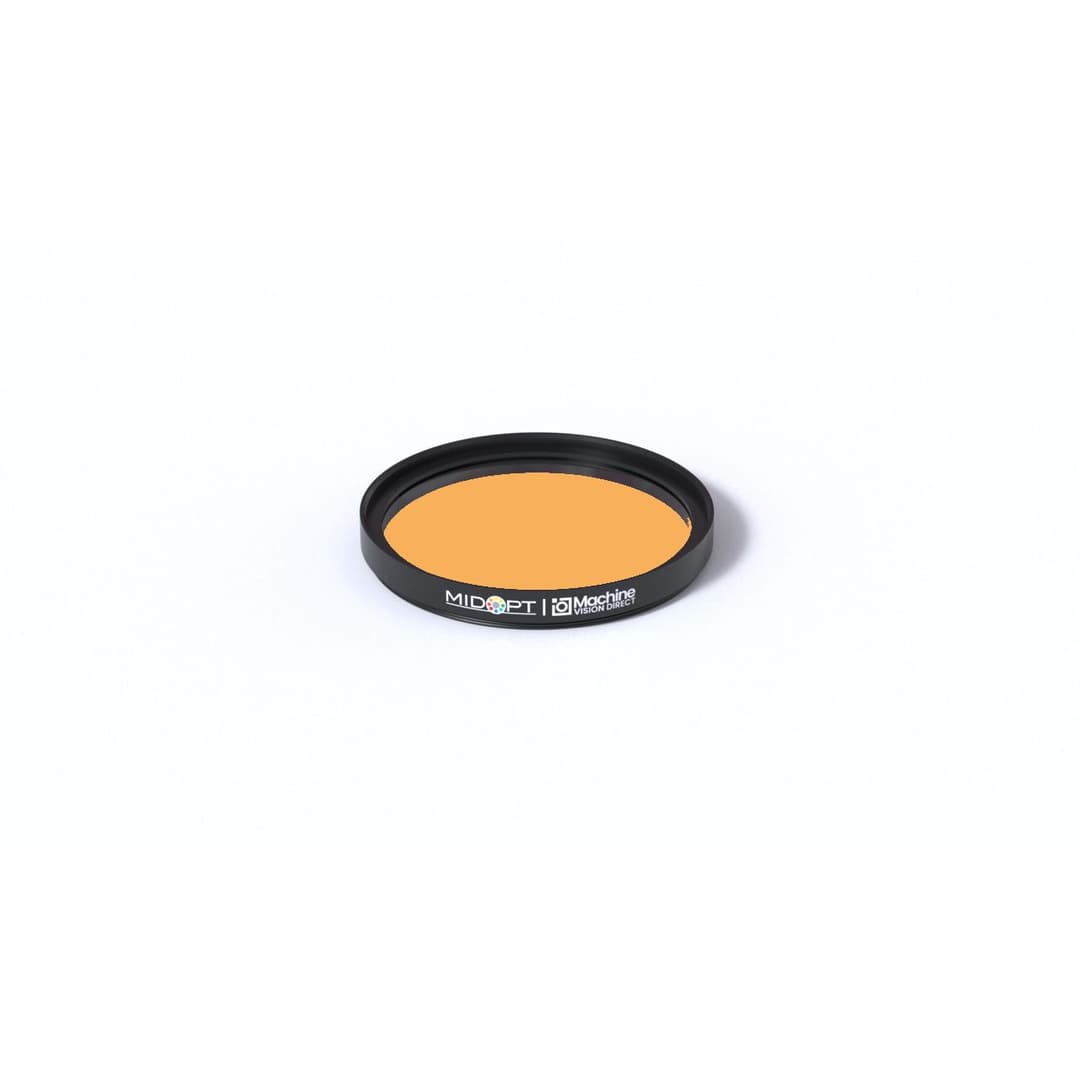

BP590-52 | BP590 Orange Bandpass Filter
Part: BP590-52
Diameter: M52 x P0.75
The MidOpt BP590-52 BP590 filters are recommended for use in systems that make use of amber or orange LED lighting. These filters are also widely used in fluorescence imaging applications, particularly with dyes such as ethidium bromide, or when working with Qdot 565, 585 or 605. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 560 nm |
| Useful Range Max | 600 nm |
| Stabledge | Yes |
| FWHM | 75 nm |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M52 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $215 |
| Cost | $107.5 |
| Charge Tax | Yes |
