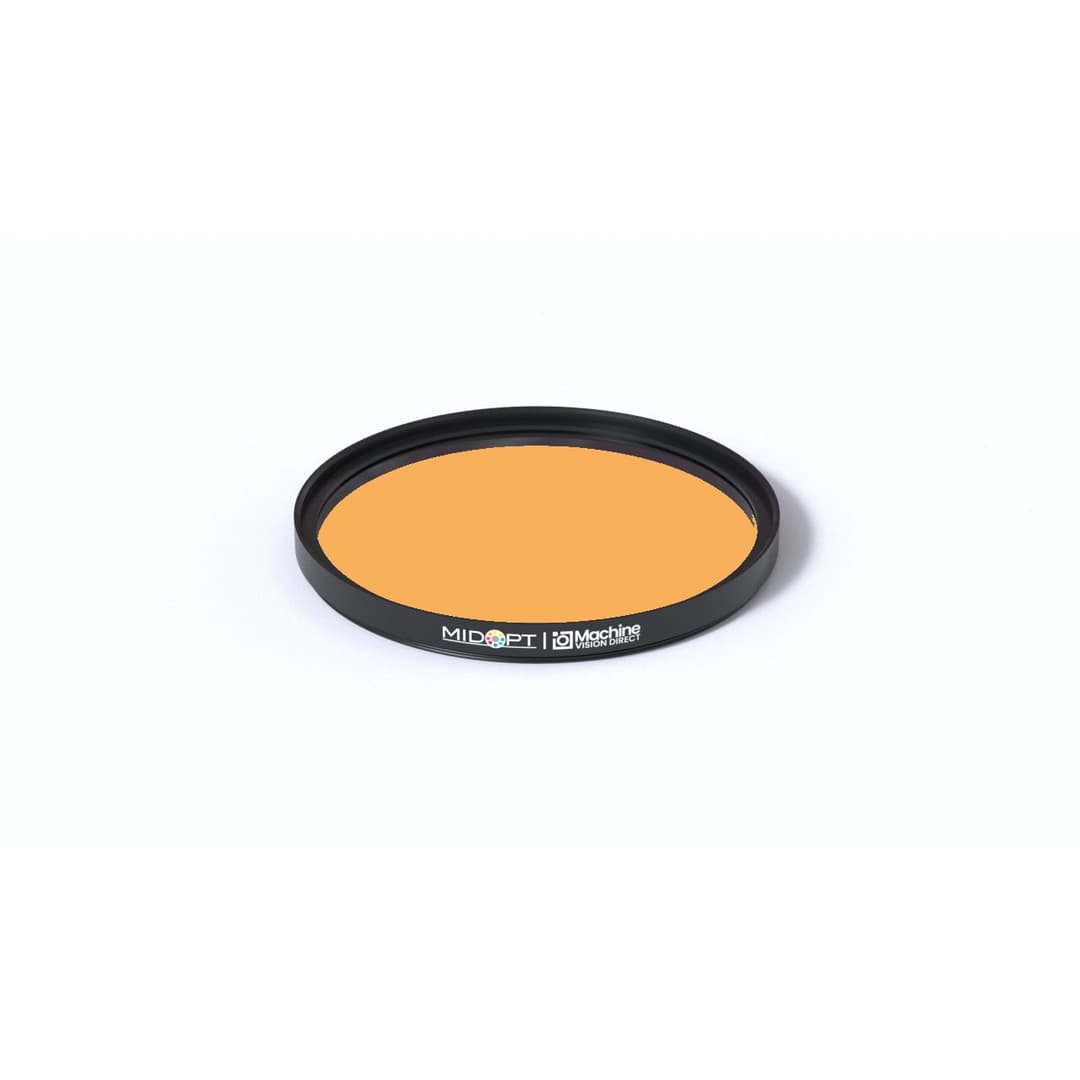

BP590-72 | BP590 Orange Bandpass Filter

Part: BP590-72

Diameter: M72 x P0.75

The MidOpt BP590-72 BP590 filters are recommended for use in systems that make use of amber or orange LED lighting. These filters are also widely used in fluorescence imaging applications, particularly with dyes such as ethidium bromide, or when working with Qdot 565, 585 or 605. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min560 nm
Useful Range Max600 nm
StabledgeYes
FWHM75 nm
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM72 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$376
Cost$188
Charge TaxYes
