Midwest Optical Systems

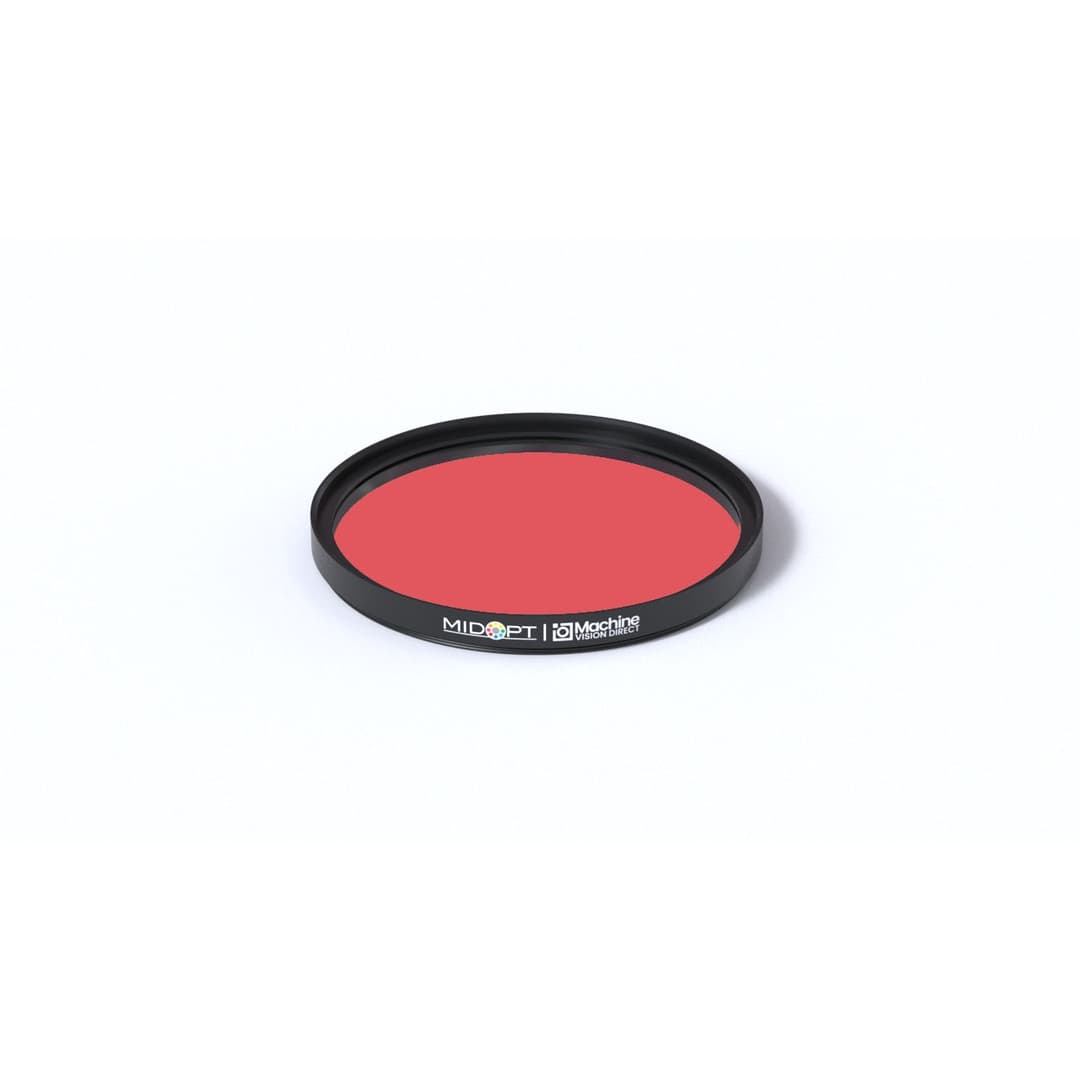

BP635-67 | BP635 Light Red Bandpass Filter
Part: BP635-67
Diameter: M67 x P0.75
The MidOpt BP635-67 A BP635 filter is recommended for use with 615-645nm LED and laser diode lighting. Because of its broad bandwidth and high peak transmission, BP635 filters work very well for all “light red” lighting applications in this range. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 615 nm |
| Useful Range Max | 645 nm |
| Stabledge | Yes |
| FWHM | 60 nm |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M67 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $302 |
| Cost | $151 |
| Charge Tax | Yes |
