Midwest Optical Systems

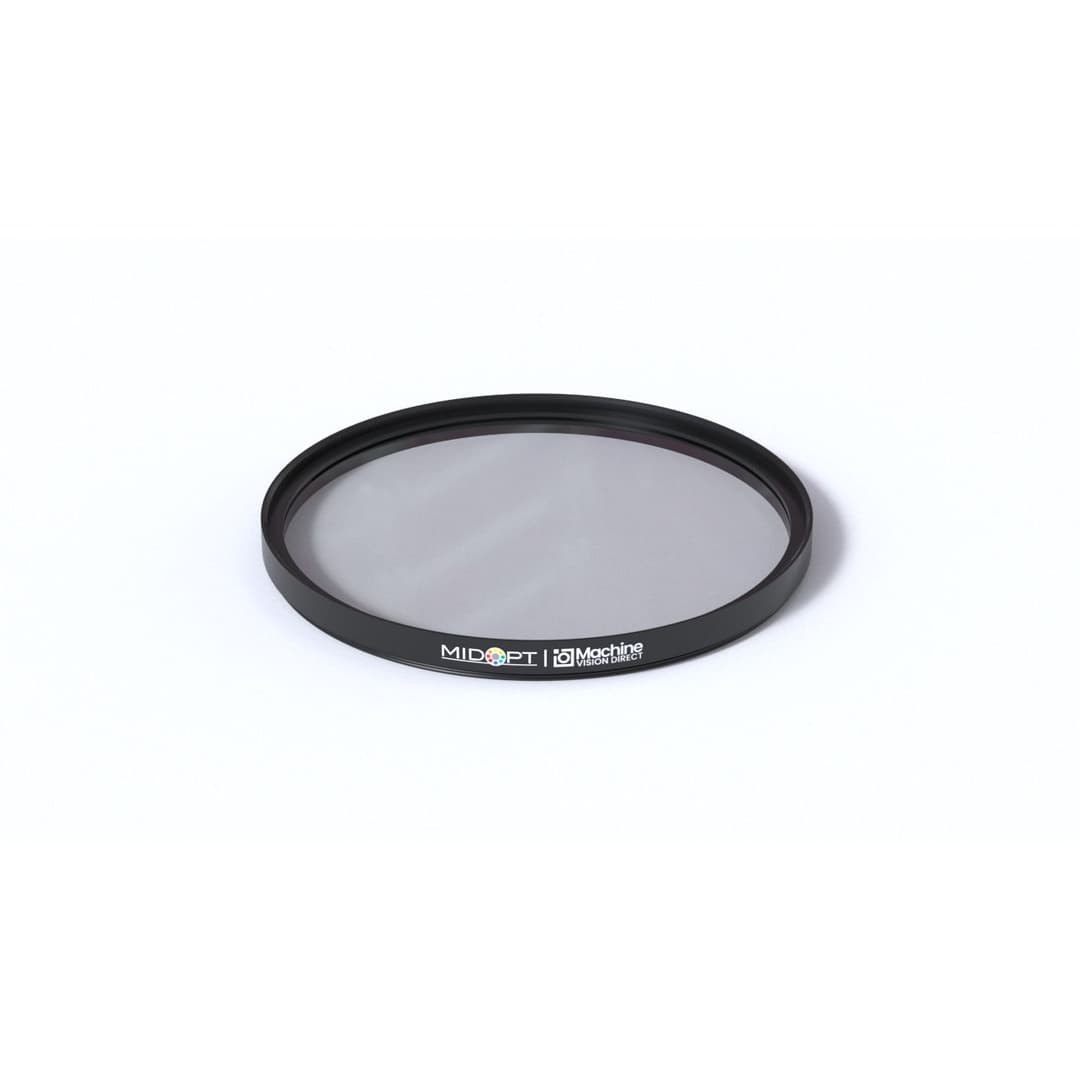

Bi1300-82 | Bi1300 Short-Wave Infrared Bandpass Filter
Part: Bi1300-82
Diameter: M82 x P0.75
The MidOpt Bi1300-82 is a Bi Series Narrow Interference Bandwidth Bandpass filter from Midwest Optical Systems. This filter has a narrow bandpass band of 1290-1310nm and is available in various mounts for use in machine vision systems and more. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 1290 nm |
| Useful Range Max | 1310 nm |
| Stabledge | No |
| FWHM | 35 nm |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M82 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $1087 |
| Cost | $543.5 |
| Charge Tax | Yes |
