Midwest Optical Systems

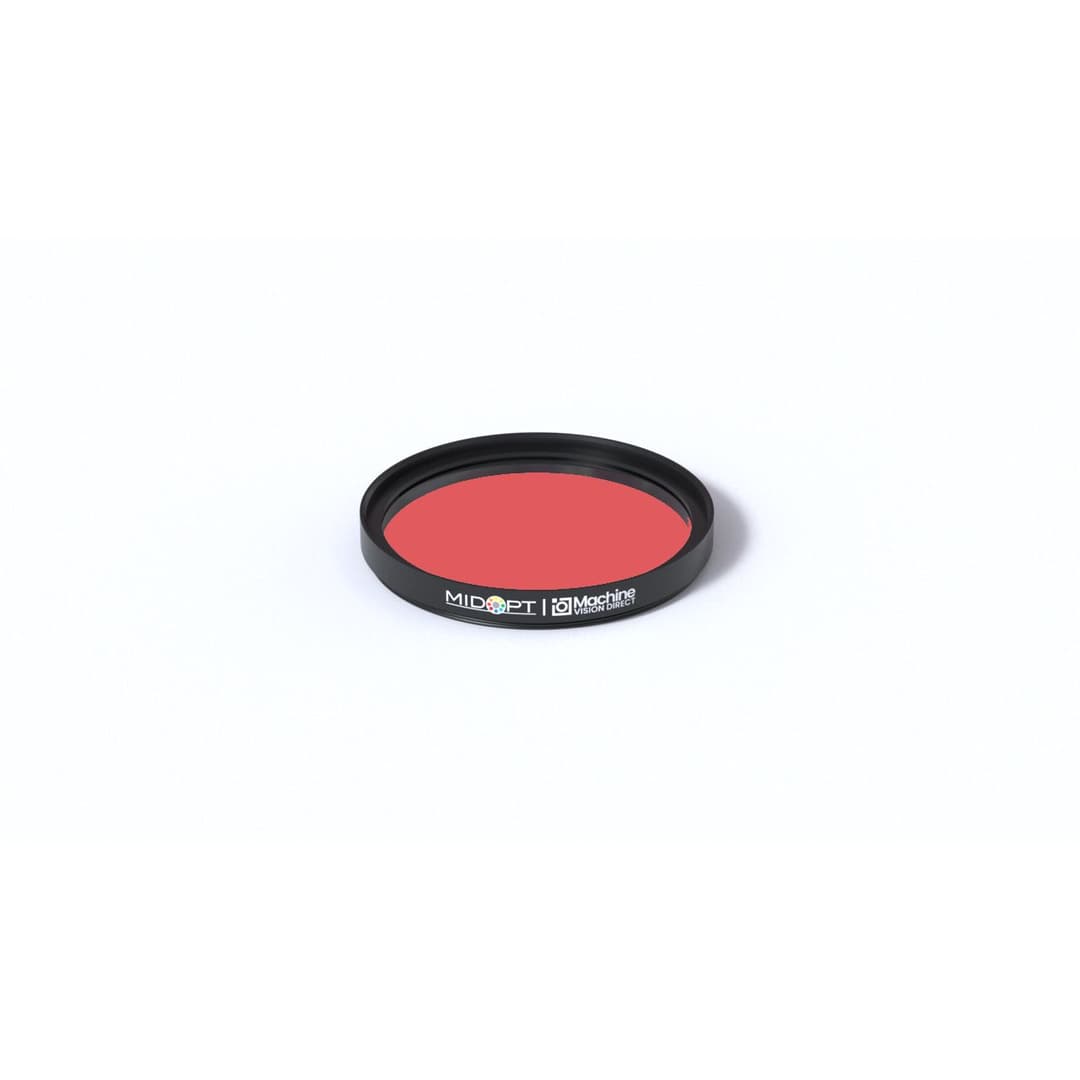

Bi632-52 | Bi632 Light Red Interference Bandpass Filter
Part: Bi632-52
Diameter: M52 x P0.75
The MidOpt Bi632-52 is recommended for use with red laser diodes and/or LED lighting where precise illumination control is needed, or similar red wavelengths are also simultaneously being imaged with other cameras. Bi632 filters effectively block out almost all interference from other red light sources. All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 625 nm |
| Useful Range Max | 640 nm |
| Stabledge | No |
| FWHM | 28 nm |
| Adhesive Backed | Yes |
| Tolerance | 5 % |
| Peak Transmission | ≤ 88 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M52 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $336 |
| Cost | $168 |
| Charge Tax | Yes |
