Midwest Optical Systems

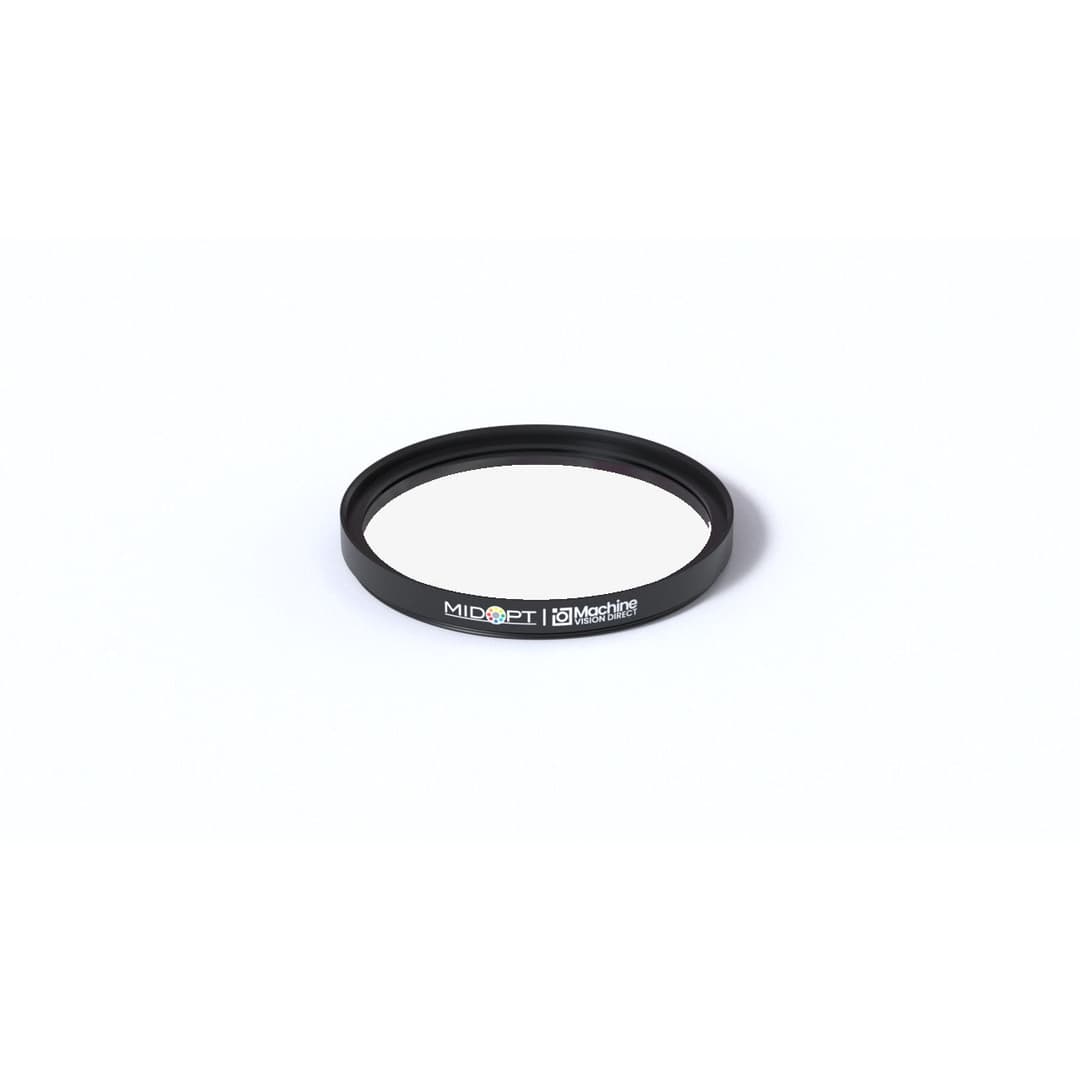

LP330-58 | LP330 Industrial-Grade Glass Protective Window
Part: LP330-58
Diameter: M58 x P0.75
The MidOpt LP330-58 LP330 Protective Windows are the lowest cost alternative when it comes to dust covers or protection of optical components. No anti-reflection coatings are provided, however parallelism and surface quality are excellent. A slight reduction in infrared and deep red transmission may also be associated with the LP330. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 350 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M58 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $62 |
| Cost | $31 |
| Charge Tax | Yes |
