Midwest Optical Systems

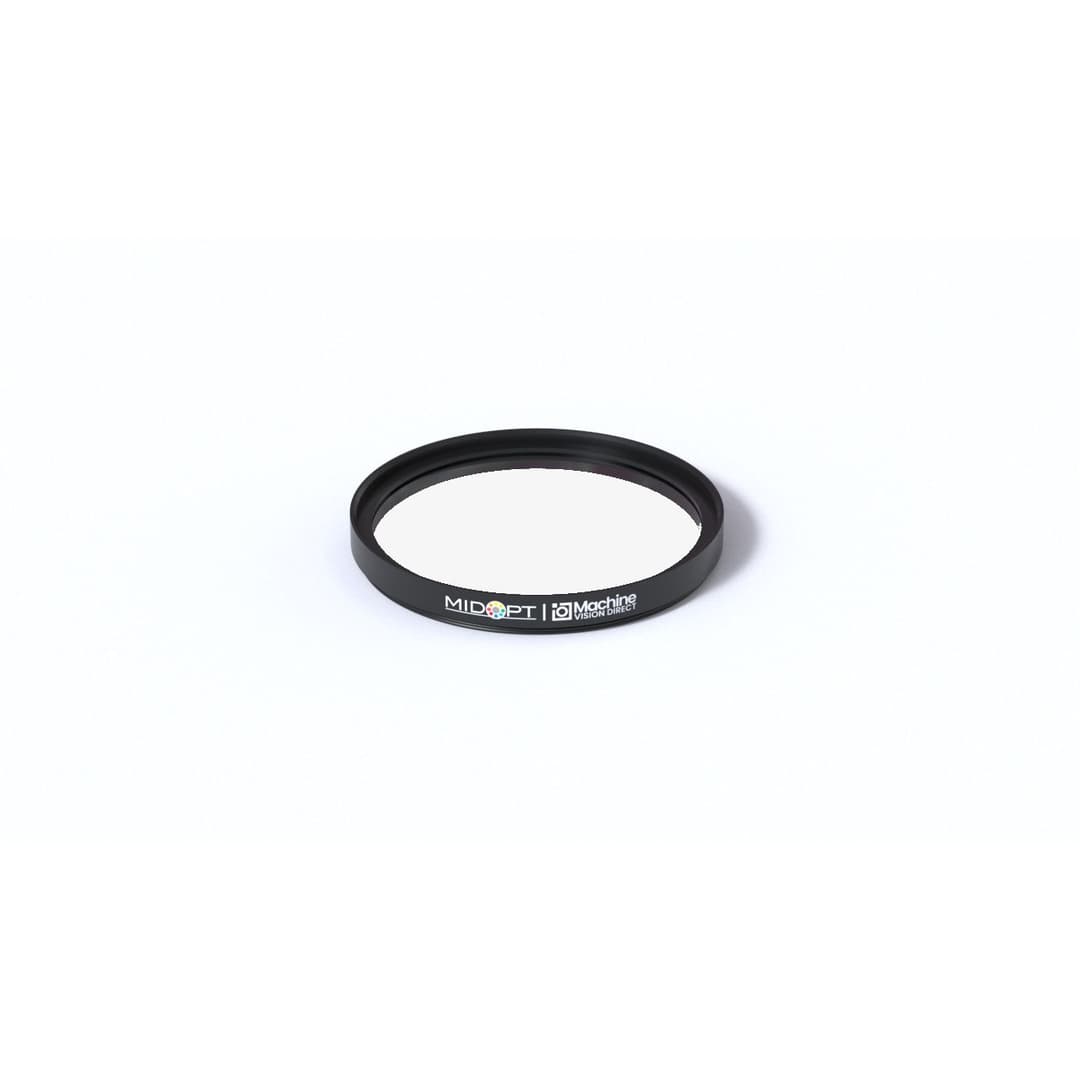

LP341-55 | LP341 Industrial-Grade Oleophobic VIS A/R Coated Glass Protective Window
Part: LP341-55
Diameter: M55 x P0.75
The MidOpt LP341-55 LP341 filters are similar to LP340 antireflection-coated protective windows except that they have the added advantage of an oleophobic coating on one side. They are offered in 1mm or 2mmm thickness. The oleophobic (anti-smudge) coating repels fingerprints, oils and moisture build-up, allowing for far easier cleaning. Frequent, uncontrolled rubbing during attempts to clean deposits or debris from the front surface of a lens will often cause scratching or pitting that results in loss of transmission and image clarity. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 365 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Peak Transmission | ≤ 98 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M55 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $115 |
| Cost | $57.5 |
| Charge Tax | Yes |
