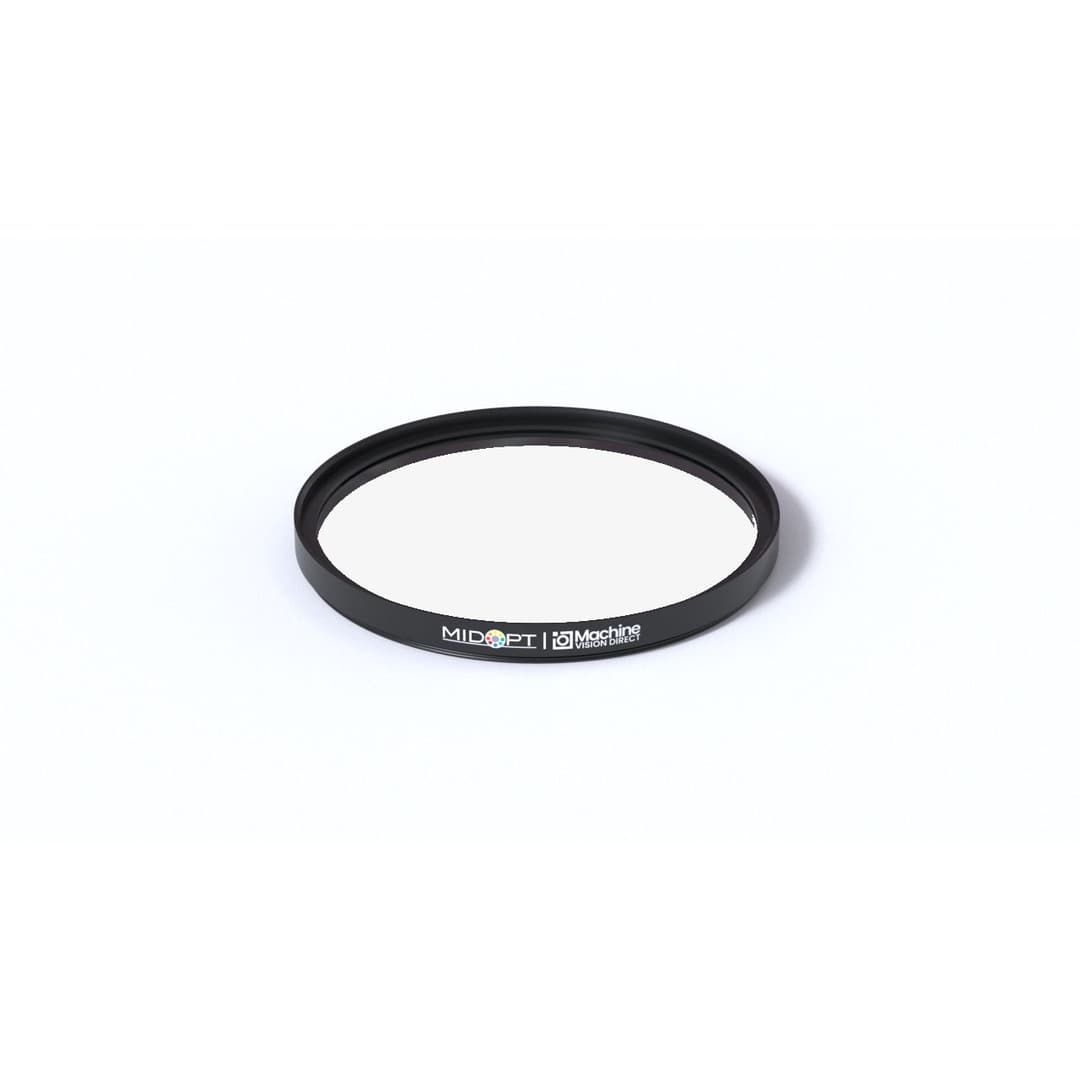

LP341-72 | LP341 Industrial-Grade Oleophobic VIS A/R Coated Glass Protective Window

Part: LP341-72

Diameter: M72 x P0.75

The MidOpt LP341-72 LP341 filters are similar to LP340 antireflection-coated protective windows except that they have the added advantage of an oleophobic coating on one side. They are offered in 1mm or 2mmm thickness. The oleophobic (anti-smudge) coating repels fingerprints, oils and moisture build-up, allowing for far easier cleaning. Frequent, uncontrolled rubbing during attempts to clean deposits or debris from the front surface of a lens will often cause scratching or pitting that results in loss of transmission and image clarity. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min365 nm
Useful Range Max1100 nm
StabledgeYes
Adhesive BackedYes
Peak Transmission≤ 98 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialClear Glass
Filter DiameterM72 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$182
Cost$91
Charge TaxYes
