Midwest Optical Systems

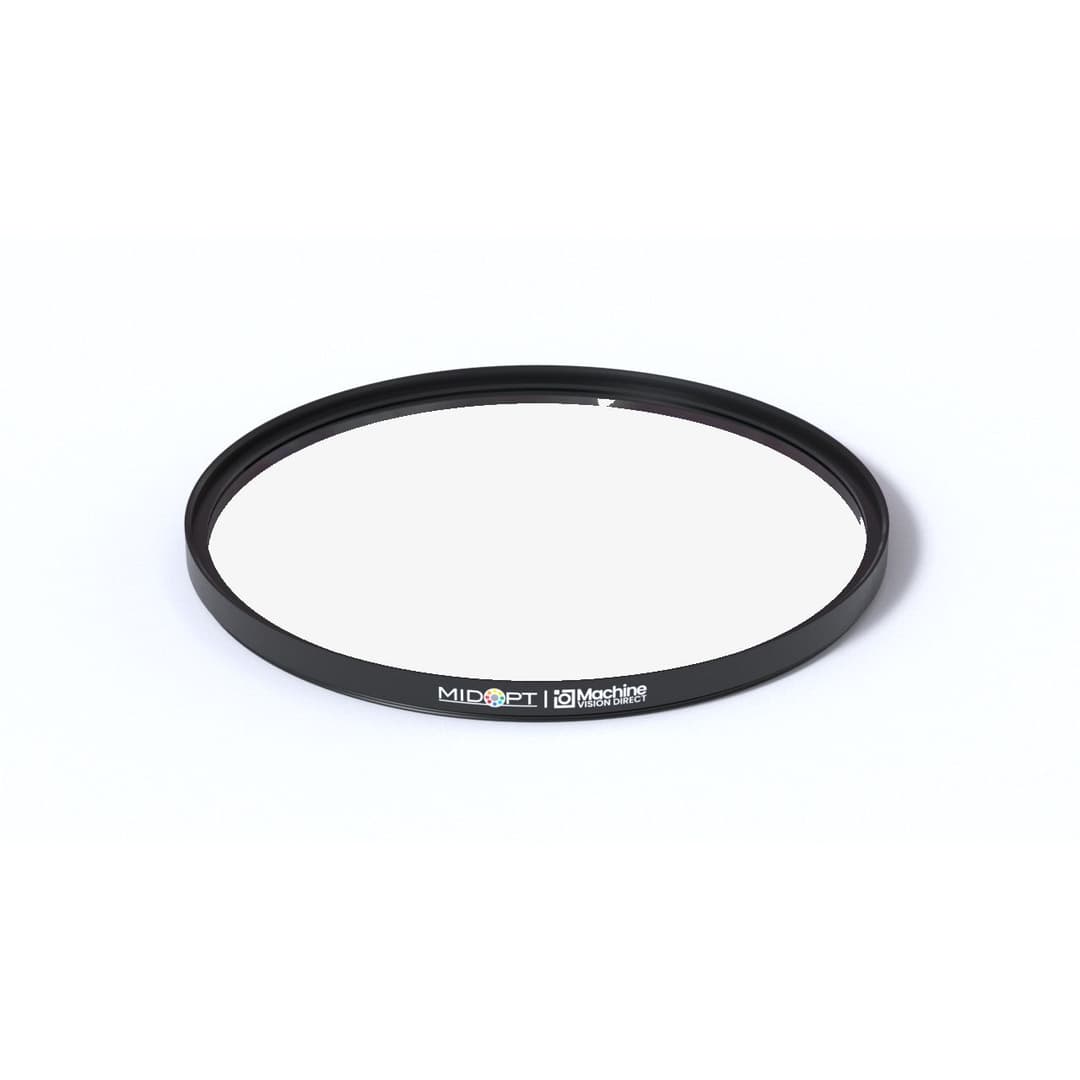

LP389-105 | LP389 Precision Multi-Layer VIS + NIR A/R Coated Glass Protective Window
Part: LP389-105
Diameter: M105 x P1.0
The MidOpt LP389-105 LP389 anti-reflection coated windows are optimized for visible AND near-infrared transmission together, making them ideal for use with cameras that are required to operate 24/7, in 3D imaging, and in some LIDAR applications. The substrate material is optically ground and polished B270 crown glass. This results in distortion-free images and excellent transmission over a very broad wavelength range. An optional oleophobic top coat can also be provided. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 98 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M105 x P1.0 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $484 |
| Cost | $242 |
| Charge Tax | Yes |
