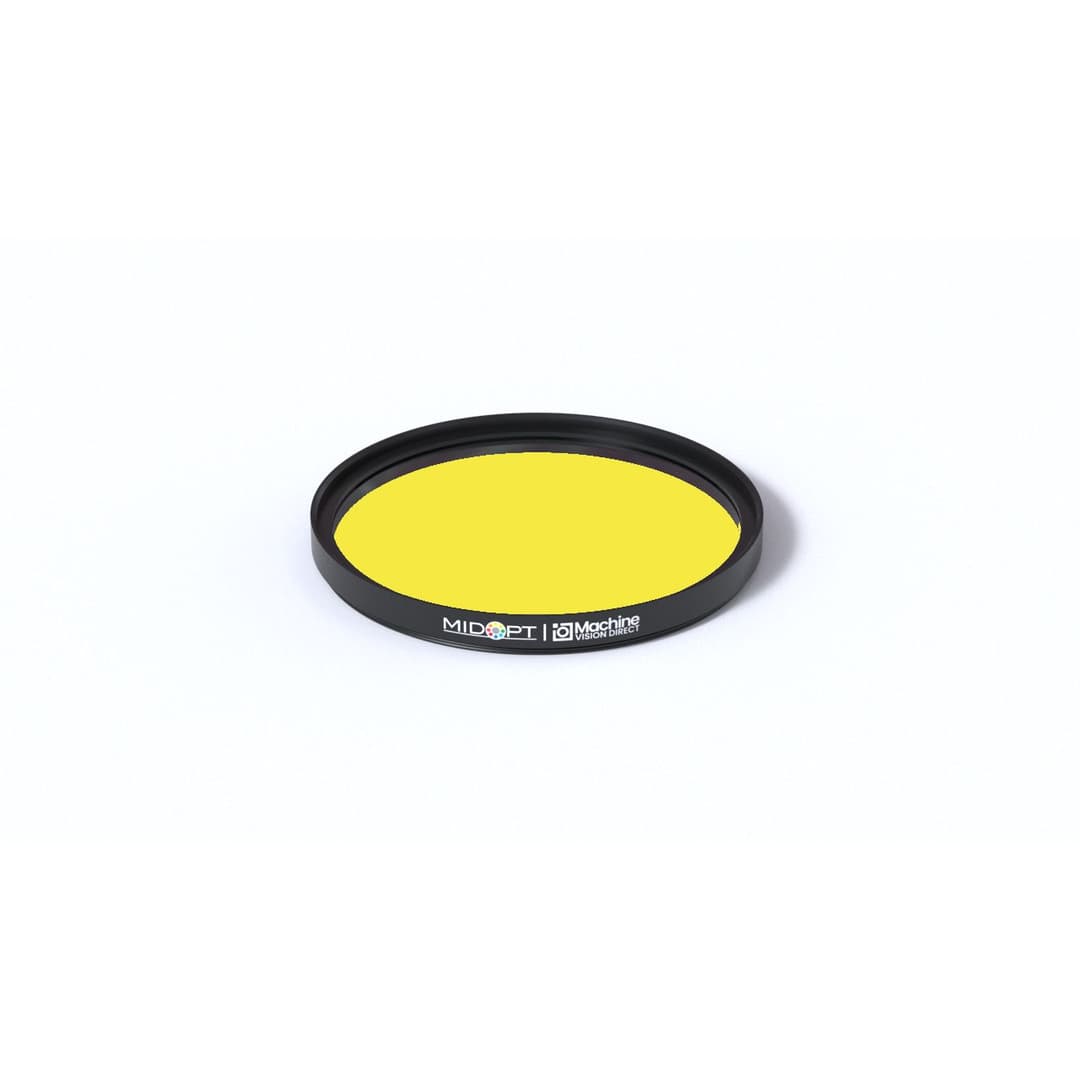

LP470-67 | LP470 Light Yellow Longpass Filter

Part: LP470-67

Diameter: M67 x P0.75

The MidOpt LP470-67 A LP470 filter passes most visible and near-IR wavelengths of light. Used with monochrome cameras to aid in increasing contrast and resolution by blocking UV and shorter deep blue wavelengths. To achieve a similar effect while also blocking longer wavelengths, including near infrared, see our BP505 filter, which transmits them and often leads to decreased contrast in many LED-illuminated imaging applications. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min480 nm
Useful Range Max1100 nm
StabledgeYes
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM67 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$136
Cost$68
Charge TaxYes
