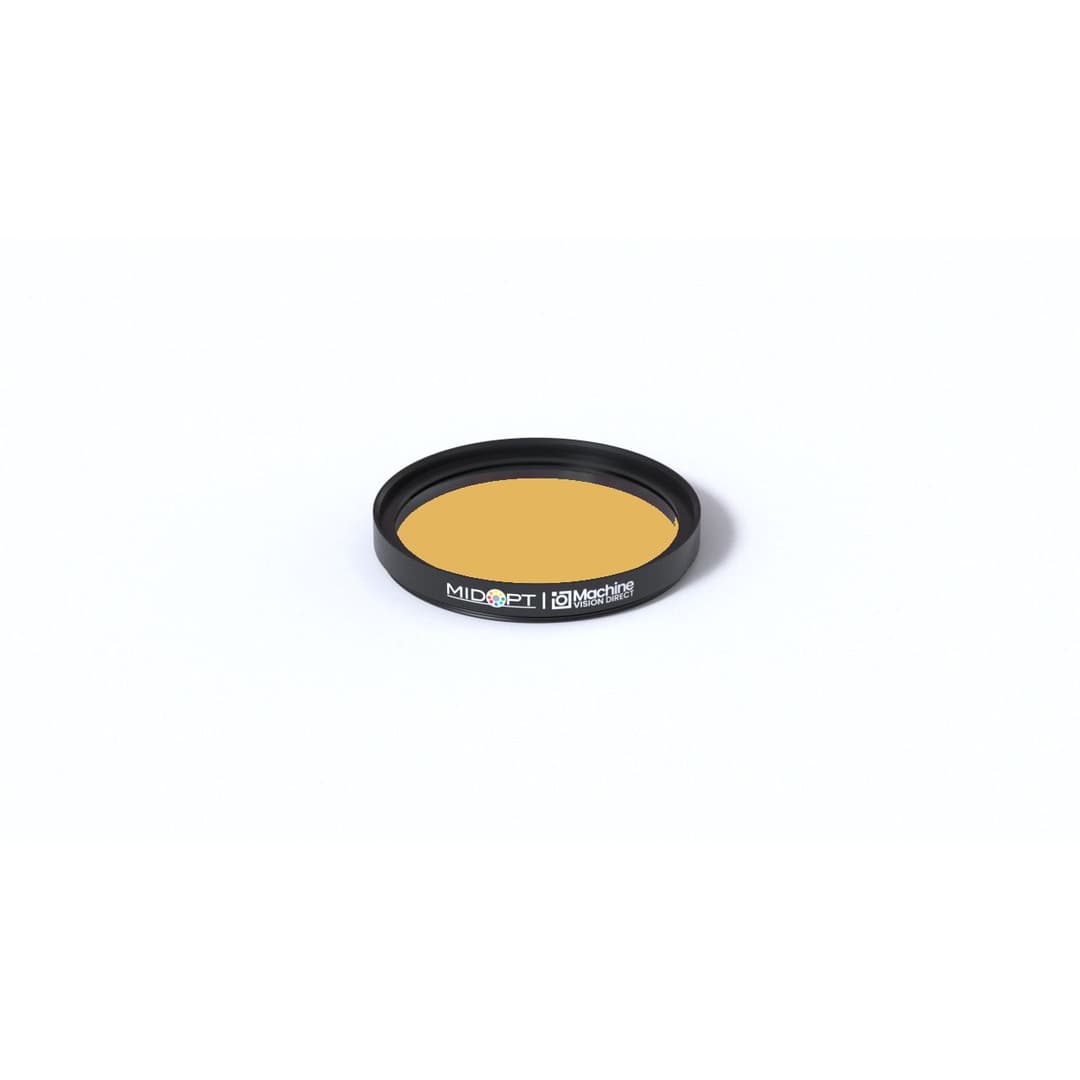

LP515-48 | LP515 Yellow-Orange Longpass Filter

Part: LP515-48

Diameter: M48 x P0.75

The MidOpt LP515-48 is used with black-and-white cameras to improve contrast and resolution. LP515 filters block blue and UV wavelengths and pass all other visible and near infrared light. To block longer wavelengths, including infrared light, see the BP535 bandpass filter. Longer wavelengths can have adverse effects when separating subject matter. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min520 nm
Useful Range Max1100 nm
StabledgeYes
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM48 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$104
Cost$52
Charge TaxYes
