Midwest Optical Systems

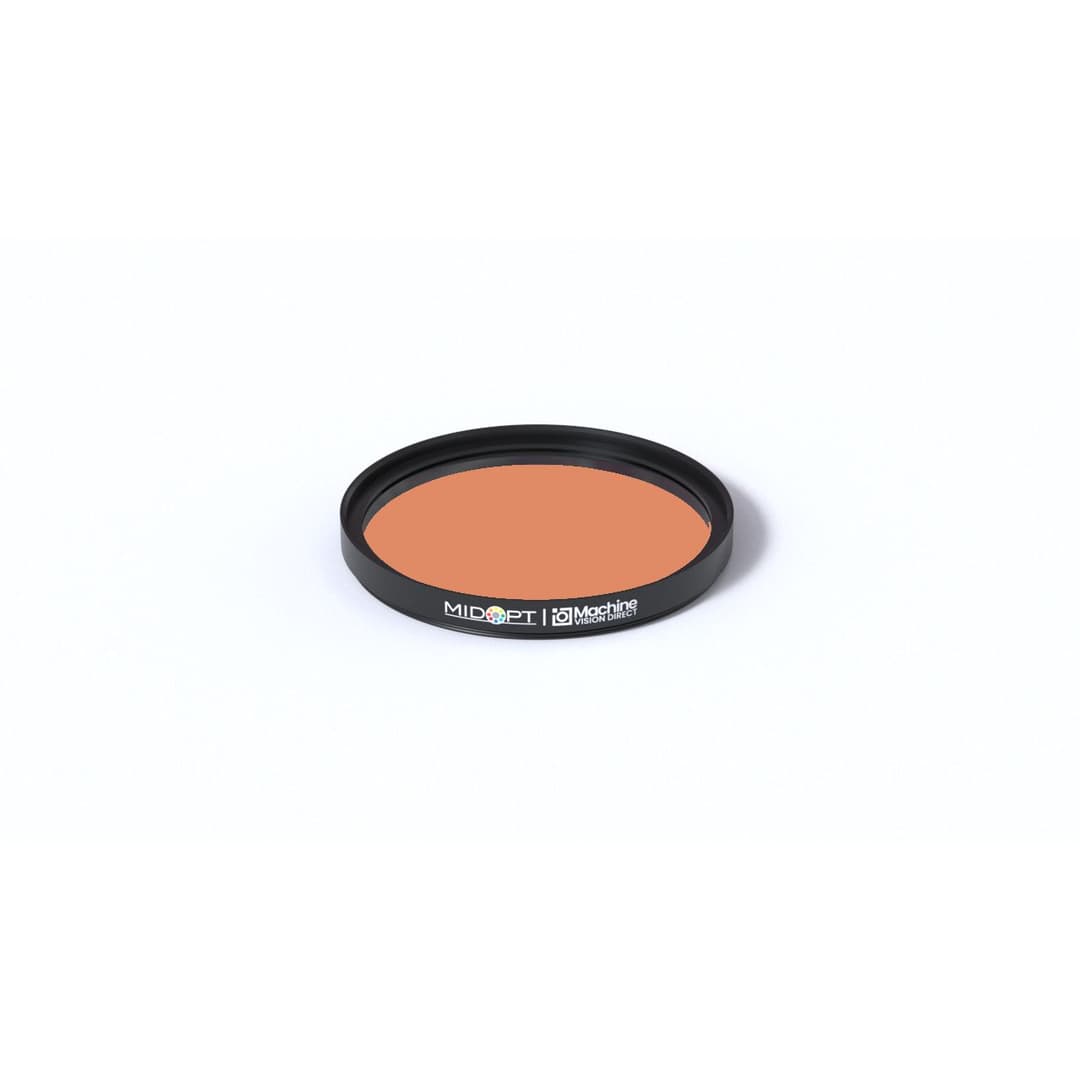

LP530-62 | LP530 Orange Longpass Filter
Part: LP530-62
Diameter: M62 x P0.75
The MidOpt LP530-62 is used with a monochrome camera to provide increased contrast and resolution. LP530 filters block blue-green and UV light, while passing longer wavelengths. To block longer wavelengths, including the near-infrared, please see our BP595 Bandpass filter. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 545 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M62 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $116 |
| Cost | $58 |
| Charge Tax | Yes |
