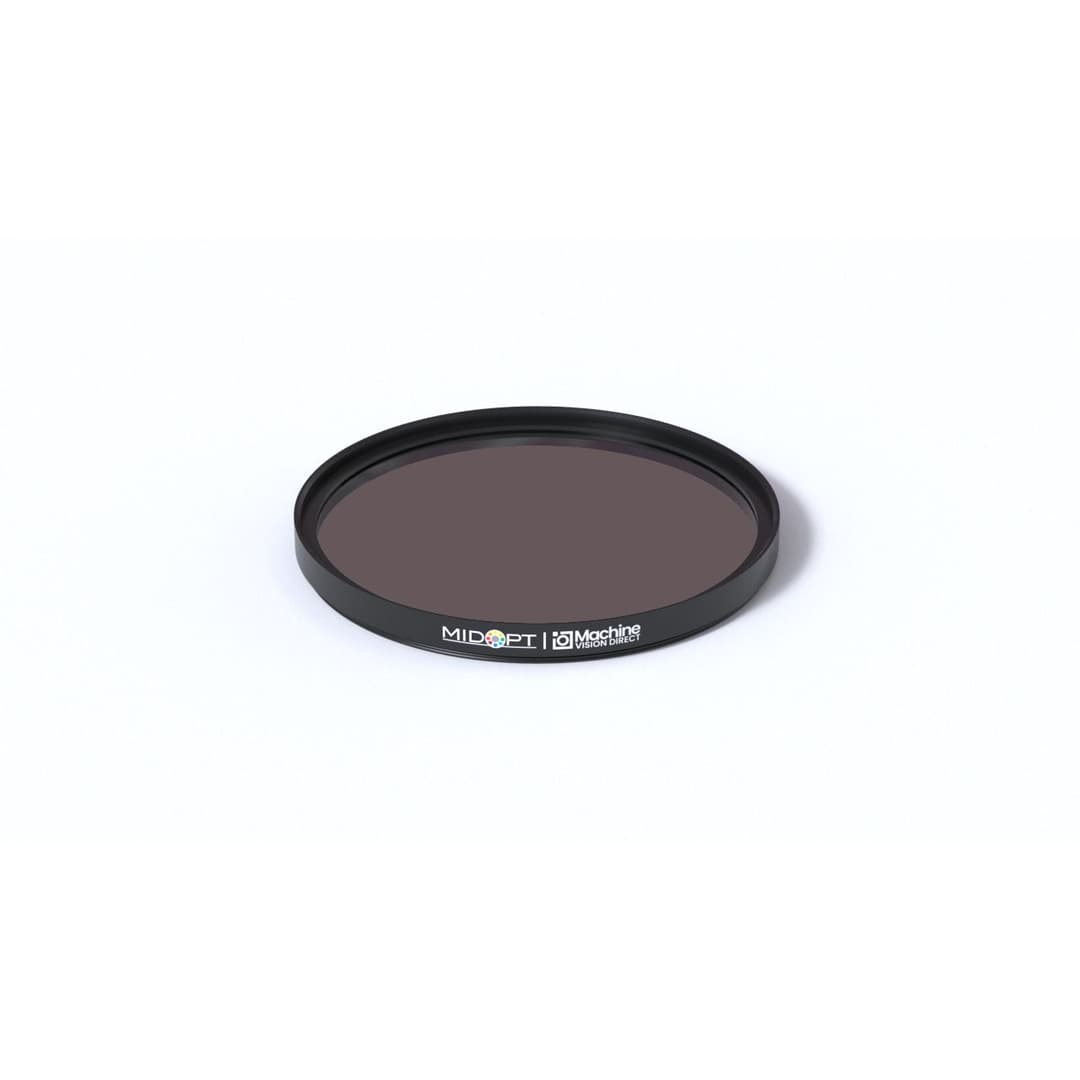

LP695-72 | LP695 Near-IR Longpass Filter

Part: LP695-72

Diameter: M72 x P0.75

The MidOpt LP695-72 is recommended for enhancing subject recognition in the IR LP695 filter material cuts-on sharply at the beginning of the infrared portion of the spectrum, passing the complete NIR spectrum. To block unwanted longer infrared wavelengths, using the BP735 Bandpass filter is an excellent alternative. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min715 nm
Useful Range Max1100 nm
StabledgeYes
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM72 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$164
Cost$82
Charge TaxYes
