Midwest Optical Systems

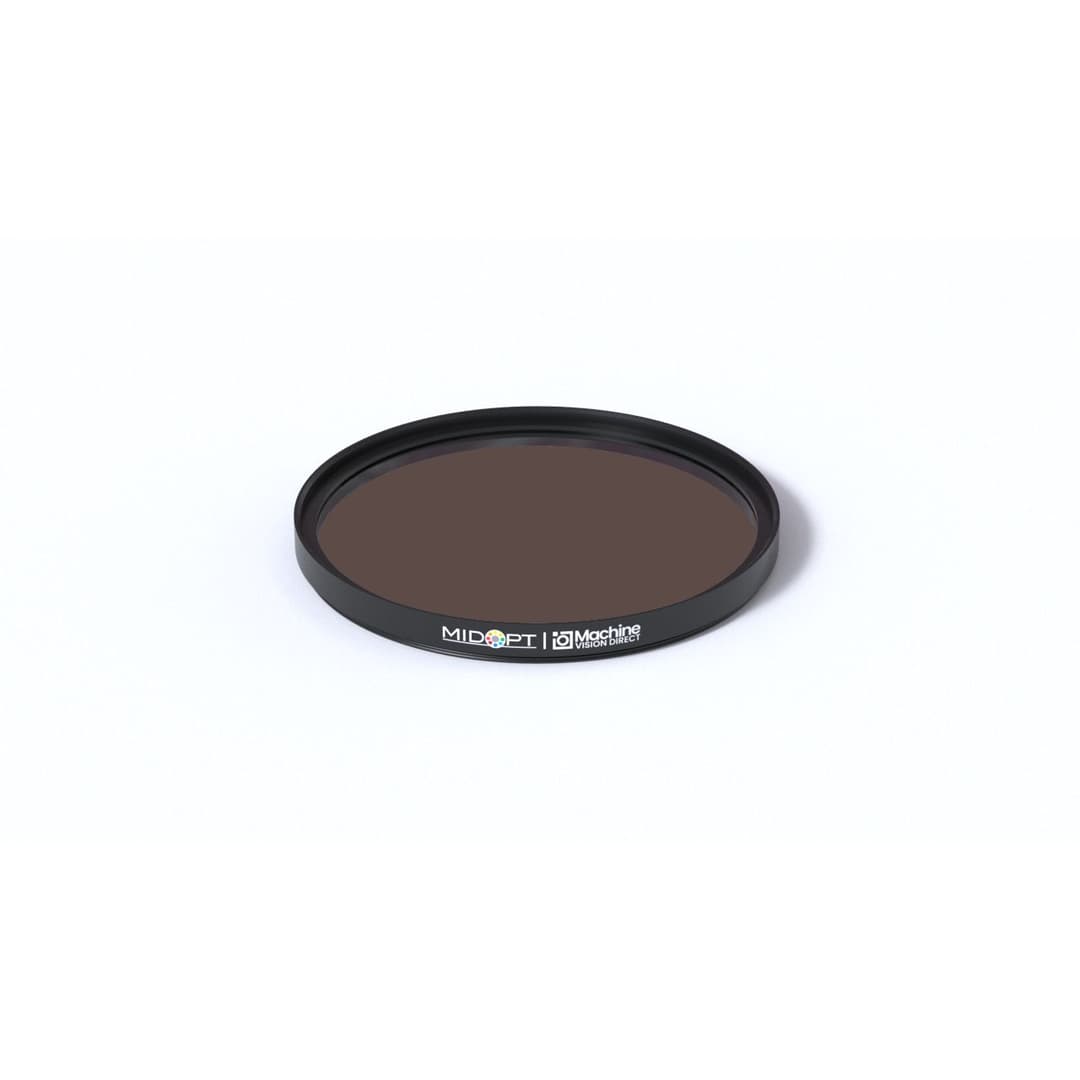

LP715-72 | LP715 Near-IR Longpass Filter
Part: LP715-72
Diameter: M72 x P0.75
The MidOpt LP715-72 is used with a monochrome camera to improve infrared contrast and resolution. LP715 filters block all visible light while passing Near-IR wavelengths. To block deeper infrared light, we recommend our BP800 Bandpass filter as an effective choice when the filter material is 1mm thick or less. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 730 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 20-10 |
| Substrate Material | Colored Glass |
| Filter Diameter | M72 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $164 |
| Cost | $82 |
| Charge Tax | Yes |
