Midwest Optical Systems

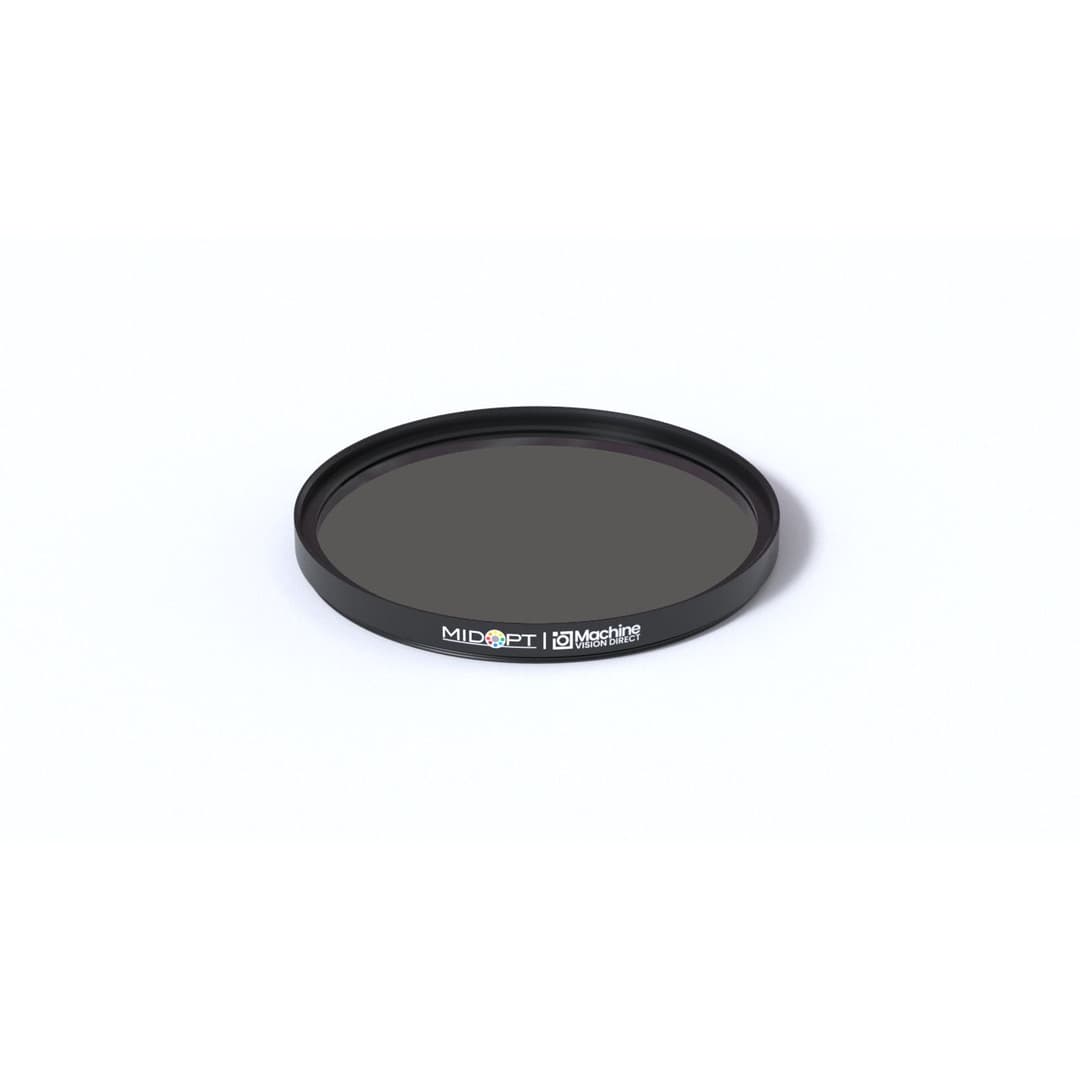

LP830-72 | LP830 Near-IR Longpass Filter
Part: LP830-72
Diameter: M72 x P0.75
The MidOpt LP830-72 LP830 is recommended for use with infrared LED lighting at 880nm or 850nm when it is also desirable to transmit longer infrared wavelengths. Otherwise, we recommend our BP880 or BP850 filters not only for their longer-wavelength blocking but also for their higher overall peak transmissions. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 845 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M72 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $305 |
| Cost | $152.5 |
| Charge Tax | Yes |
