Midwest Optical Systems

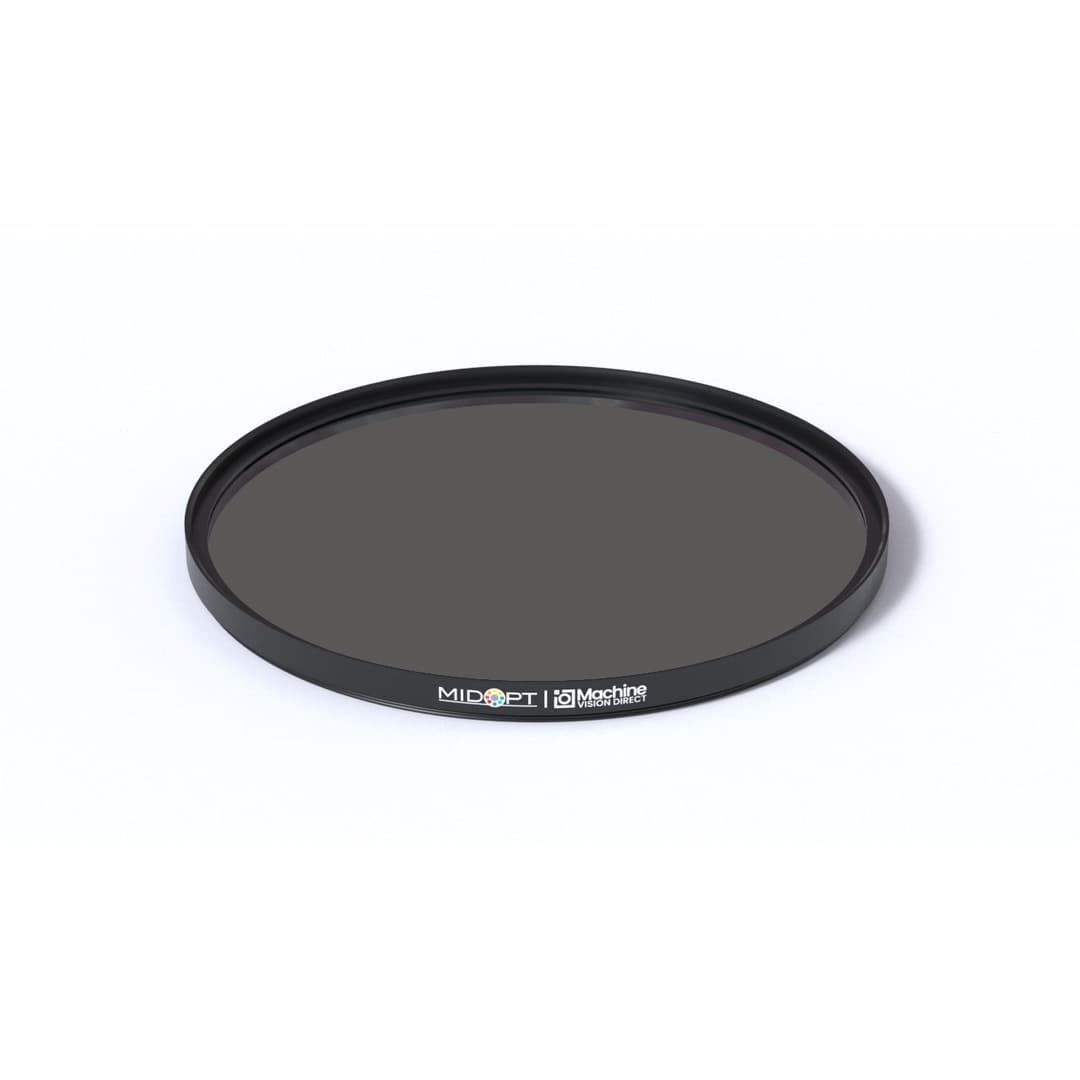

LP850-105 | LP850 Near-IR Longpass Filter
Part: LP850-105
Diameter: M105 x P1.0
The MidOpt LP850-105 LP850 filter material is excellent for eliminating overwhelming visible and NIR ambient light, particularly when the camera's spectral response beyond 900nm approaches zero. Otherwise, we encourage customers to consider using an LP920 filter instead. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 870 nm |
| Useful Range Max | 1100 nm |
| Stabledge | Yes |
| Adhesive Backed | Yes |
| Tolerance | 10 % |
| Peak Transmission | ≤ 90 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M105 x P1.0 |
