LP900-105 | LP900 (Limited) Near-IR Longpass

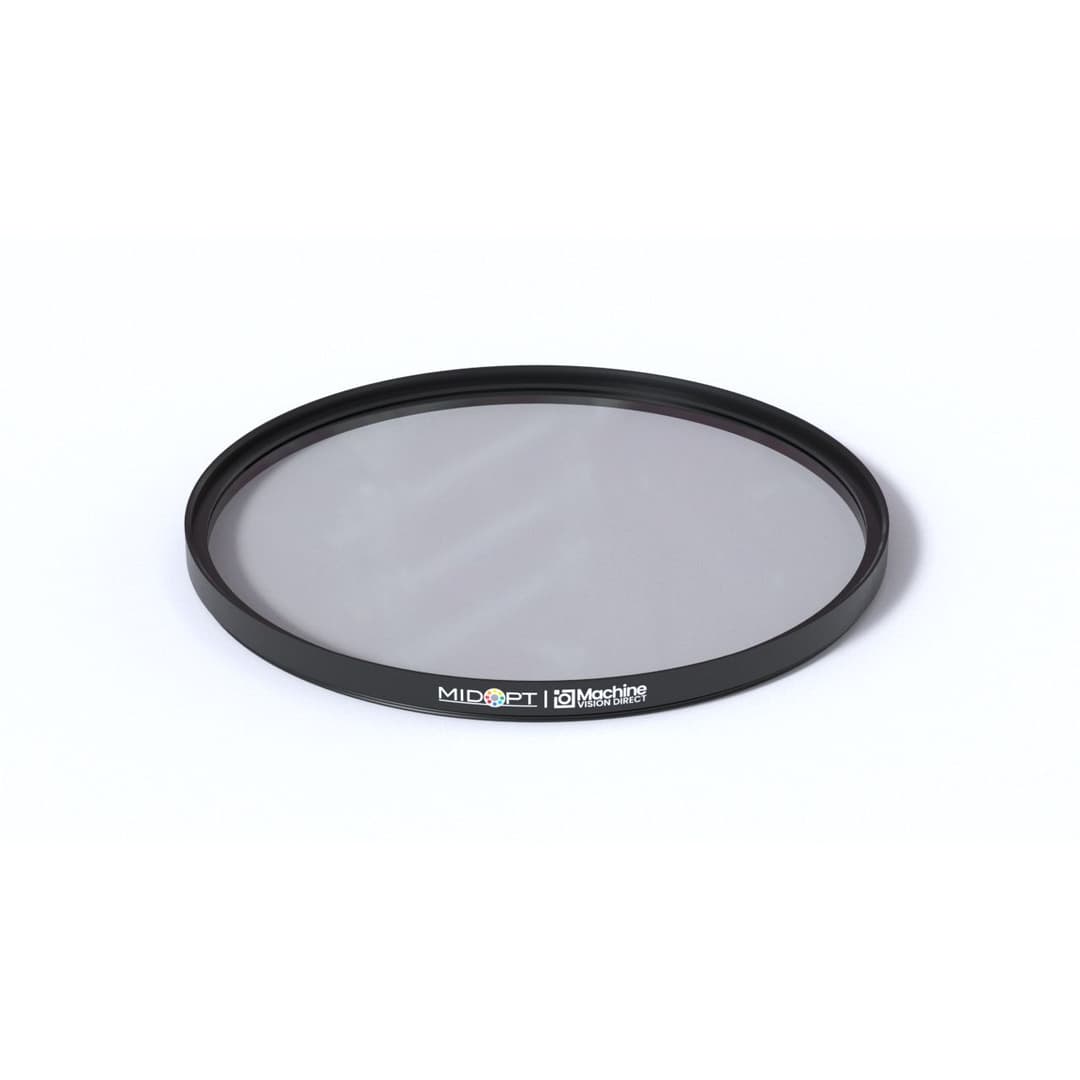

Part: LP900-105

Diameter: M105 x P1.0

The MidOpt LP900-105 LP900 filters sharply block light below 900nm while allowing longer wavelengths to pass. This would be the filter of choice when viewing reflected 915nm laser diode light. These filters can also be used in infrared digital photography, as detector windows, and in various scientific and forensic applications. For example, images of blood stains or gunshot residue on dark-colored fabrics or denim can often be enhanced by causing the fabric to appear white or comparatively much lighter when using an LP900 filter over the lens of a camera that has had its IR blocking filter removed. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min910 nm
Useful Range Max1100 nm
StabledgeNo
Adhesive BackedYes
Tolerance10 %
Peak Transmission≤ 90 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM105 x P1.0

Dimensions

Length4.32 in / 109.8 mm
Width4.32 in / 109.8 mm
Height0.43 in / 11 mm
Outer Diameter4.32 in / 109.8 mm
Product Weight0.5 lbs / 0.229 kg

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$712
Cost$356
Charge TaxYes

Shipping Information

Shipping Length5 in
Shipping Width5 in
Shipping Height1 in
Shipping Weight0.1 lbs
