ND060-105 | ND060 Neutral Density Filter - Absorptive 25% Transmission

Part: ND060-105

Diameter: M105 x P1.0

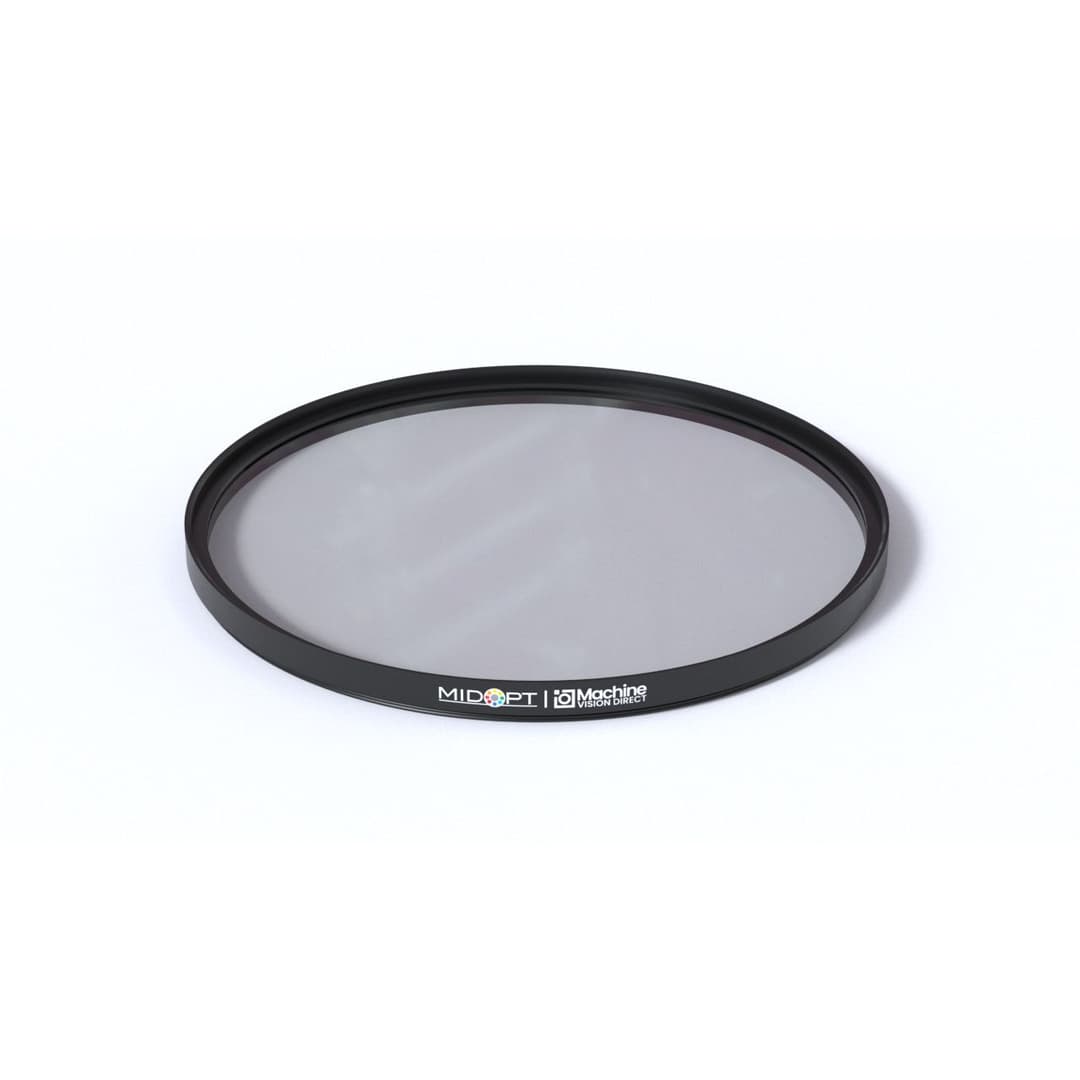

The MidOpt ND060-105 ND060 absorptive neutral density filters have an optical density of 0.6, or average 25% transmission within the visible spectrum. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. For example, two ND060 filters stacked together would be approximately equivalent to one ND120 filter. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min425 nm
Useful Range Max675 nm
StabledgeN/A
Adhesive BackedYes
Tolerance3 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM105 x P1.0

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$395
Cost$197.5
Charge TaxYes
