Midwest Optical Systems

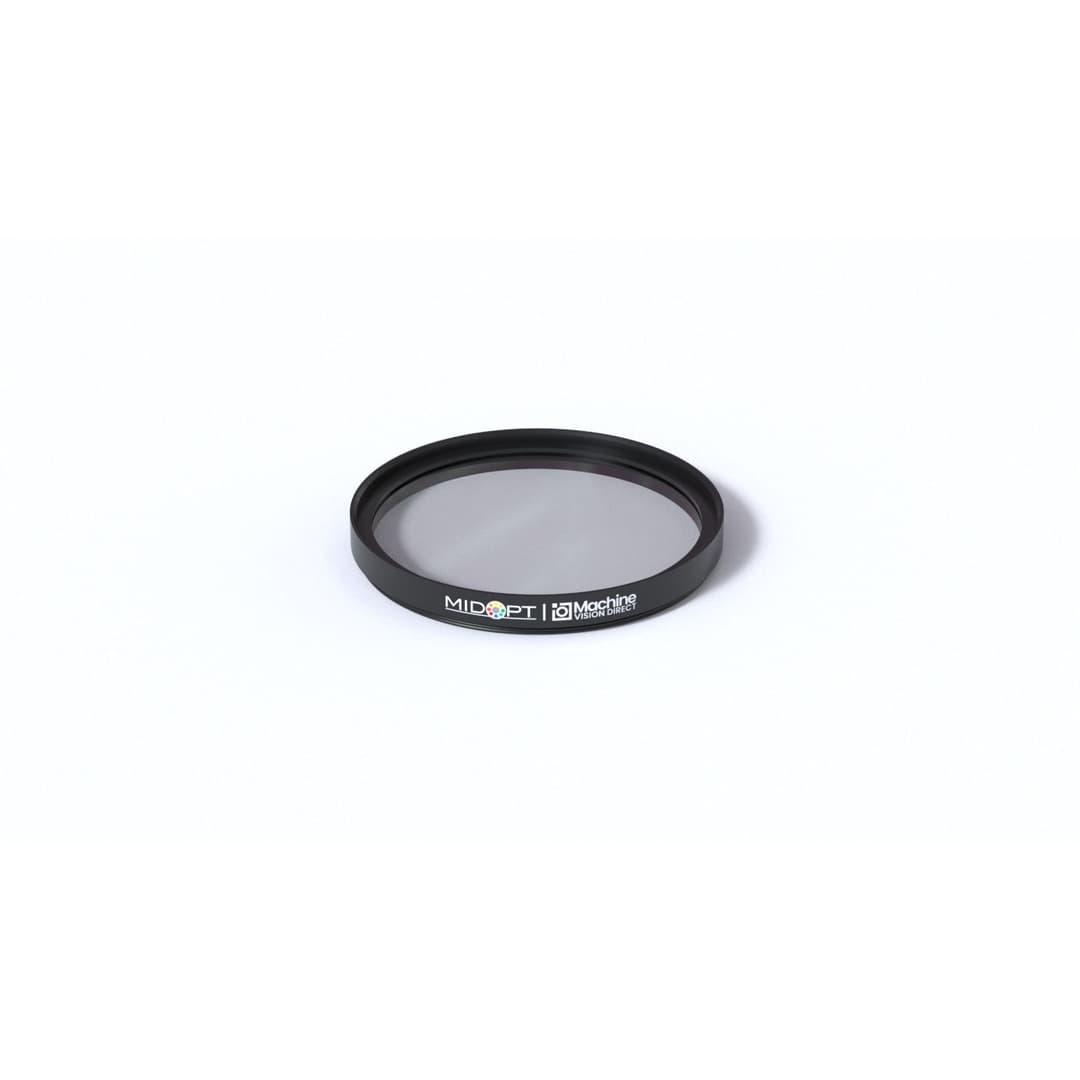

ND060-55 | ND060 Neutral Density Filter - Absorptive 25% Transmission
Part: ND060-55
Diameter: M55 x P0.75
The MidOpt ND060-55 ND060 absorptive neutral density filters have an optical density of 0.6, or average 25% transmission within the visible spectrum. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. For example, two ND060 filters stacked together would be approximately equivalent to one ND120 filter. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 425 nm |
| Useful Range Max | 675 nm |
| Stabledge | N/A |
| Adhesive Backed | Yes |
| Tolerance | 3 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Colored Glass |
| Filter Diameter | M55 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $74 |
| Cost | $37 |
| Charge Tax | Yes |
