Midwest Optical Systems

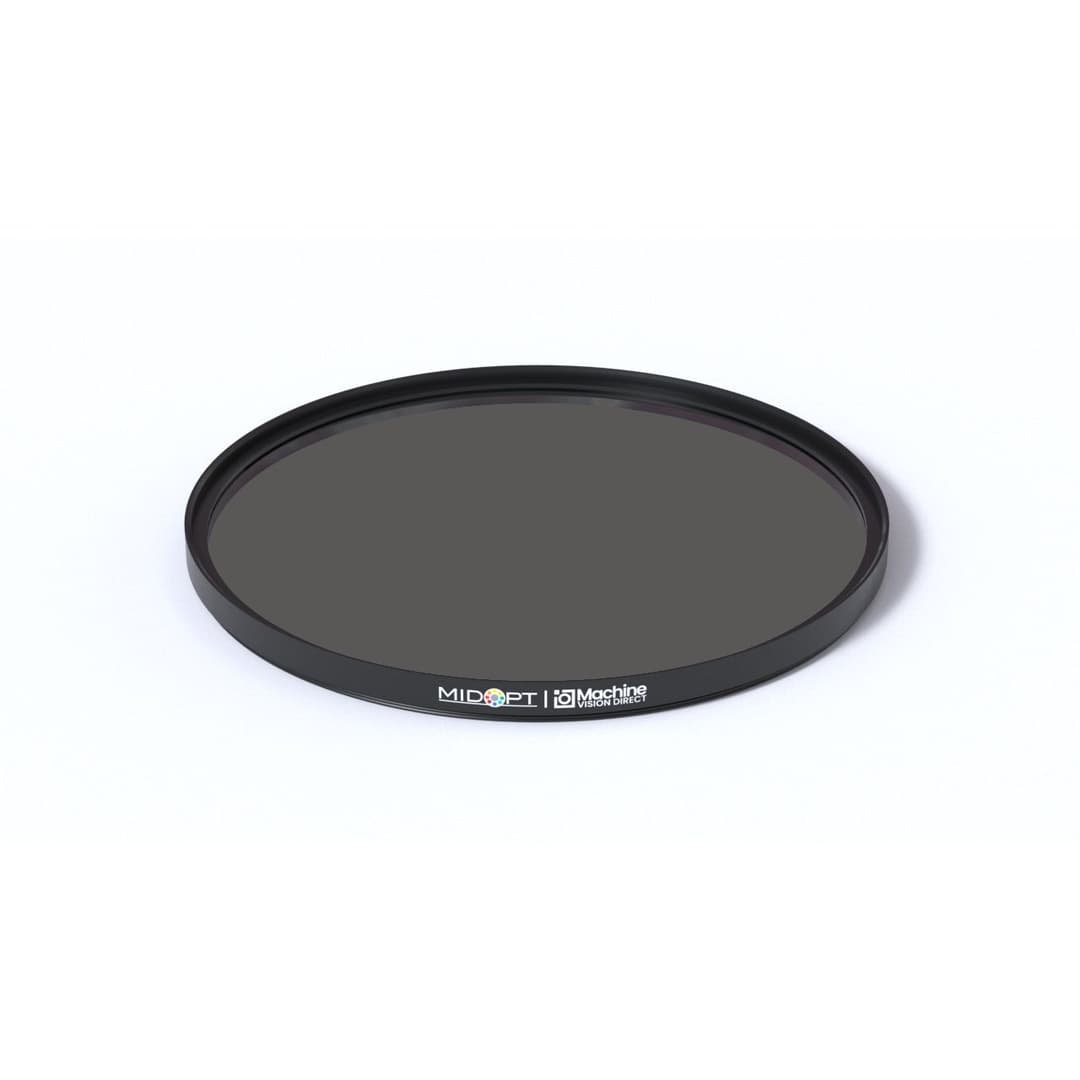

ND200-105 | ND200 Neutral Density Filter - Absorptive 1.0% Transmission

Part: ND200-105

Diameter: M105 x P1.0

The MidOpt ND200-105 ND200 absorptive neutral density filters have an optical density of 2.0, transmitting an average of 1% of the visible spectrum. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. Stacking two ND200 filters together, would be nearly equivalent to a ND400 filter; i.e., visible light transmission would be approximately equal to 0.01%. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min425 nm
Useful Range Max675 nm
StabledgeN/A
Adhesive BackedYes
Tolerance0.15 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialColored Glass
Filter DiameterM105 x P1.0

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$561
Cost$280.5
Charge TaxYes
