Midwest Optical Systems

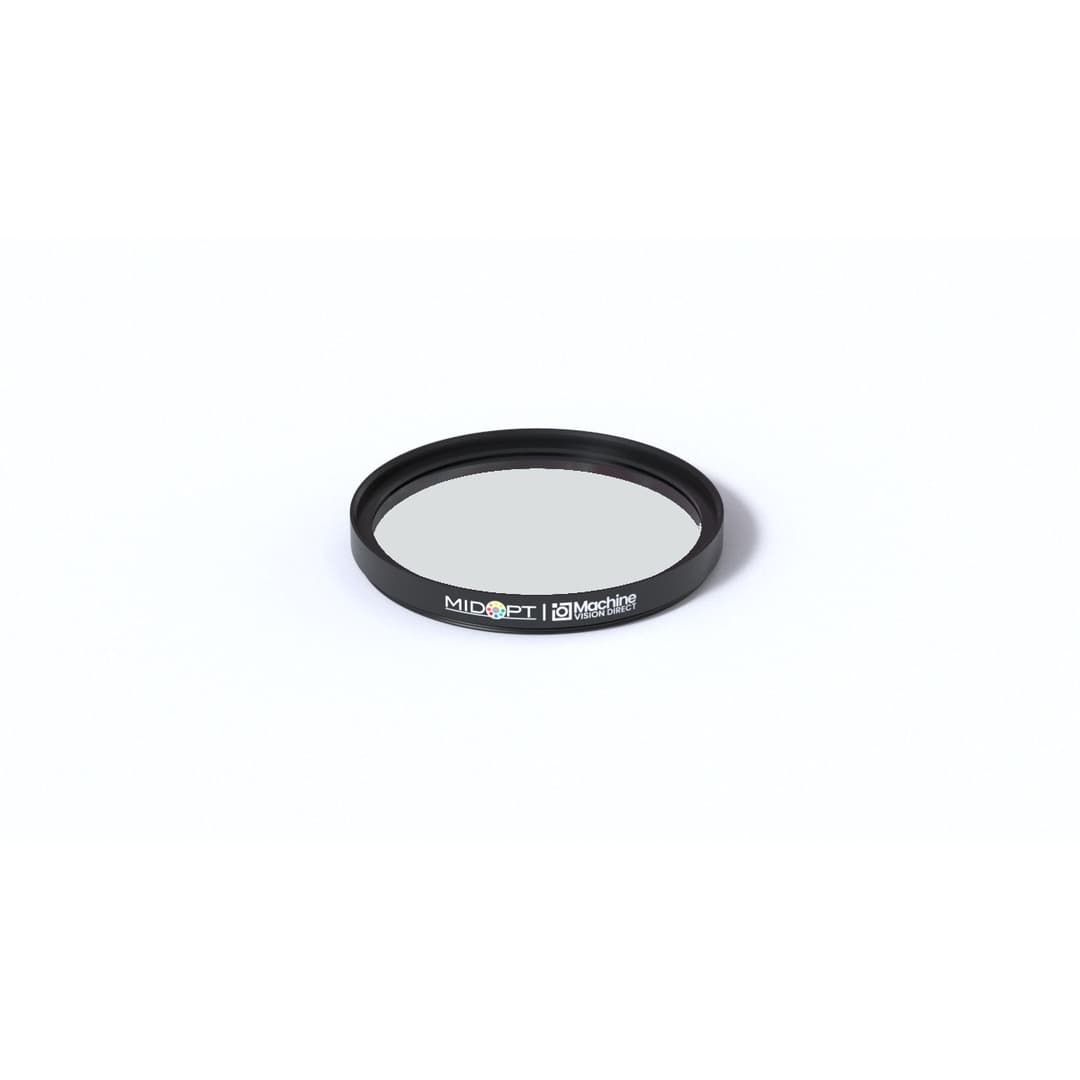

Ni030-55 | Ni030 Neutral Density Filter - Low Reflectivity 50% Transmission
Part: Ni030-55
Diameter: M55 x P0.75
The MidOpt Ni030-55 Ni030 filters feature uniform attenuation simultaneously over the visible and near-IR range that is imaged by most industrial CCD/CMOS cameras. That is, regardless of wavelength within this range, on average approximately 50% of the light will be transmitted while less than 10% will be reflected back towards the source or subject. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 2000 nm |
| Stabledge | N/A |
| Adhesive Backed | Yes |
| Tolerance | 5 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M55 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $158 |
| Cost | $79 |
| Charge Tax | Yes |
