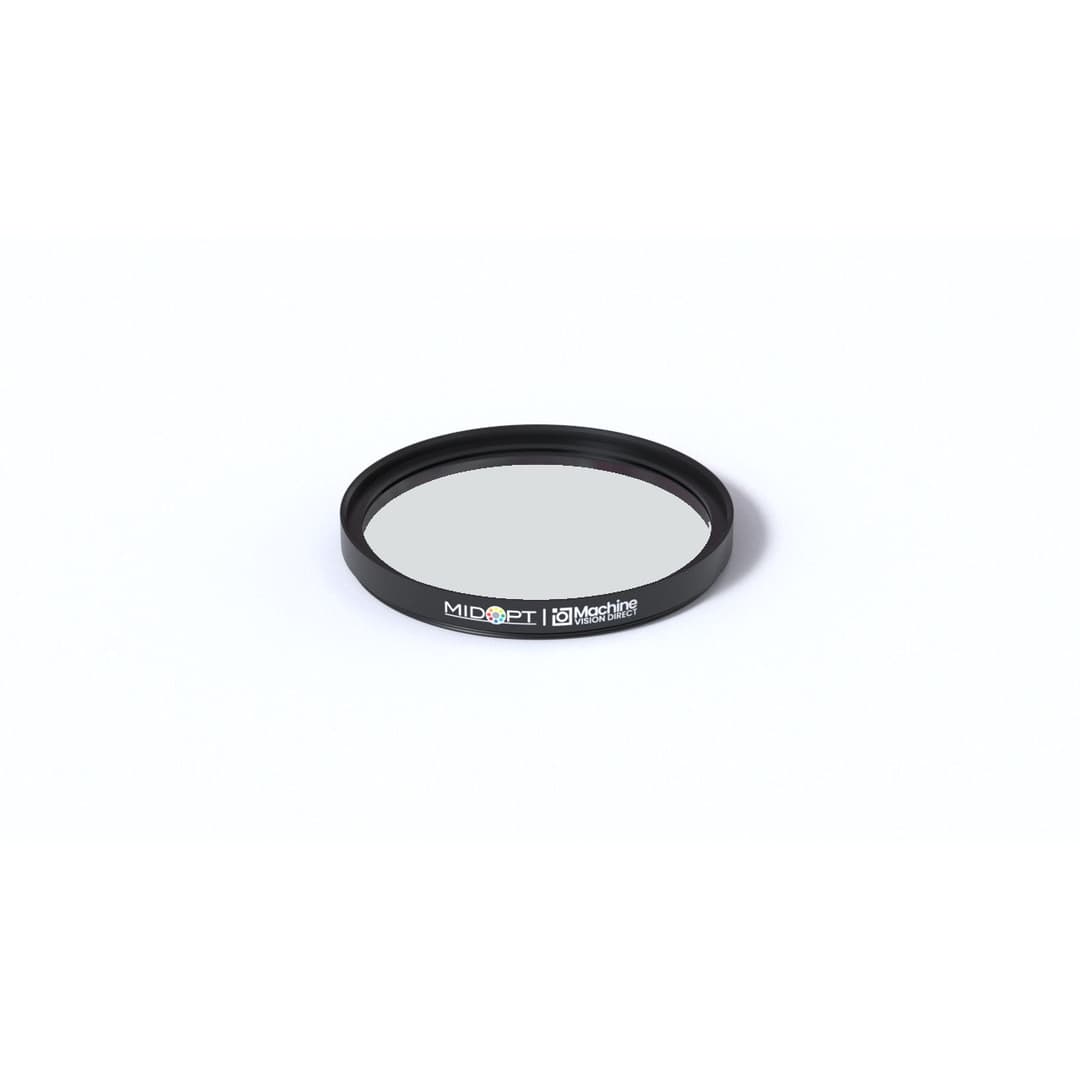

Ni030-62 | Ni030 Neutral Density Filter - Low Reflectivity 50% Transmission

Part: Ni030-62

Diameter: M62 x P0.75

The MidOpt Ni030-62 Ni030 filters feature uniform attenuation simultaneously over the visible and near-IR range that is imaged by most industrial CCD/CMOS cameras. That is, regardless of wavelength within this range, on average approximately 50% of the light will be transmitted while less than 10% will be reflected back towards the source or subject. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min400 nm
Useful Range Max2000 nm
StabledgeN/A
Adhesive BackedYes
Tolerance5 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialClear Glass
Filter DiameterM62 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$189
Cost$94.5
Charge TaxYes
