Midwest Optical Systems

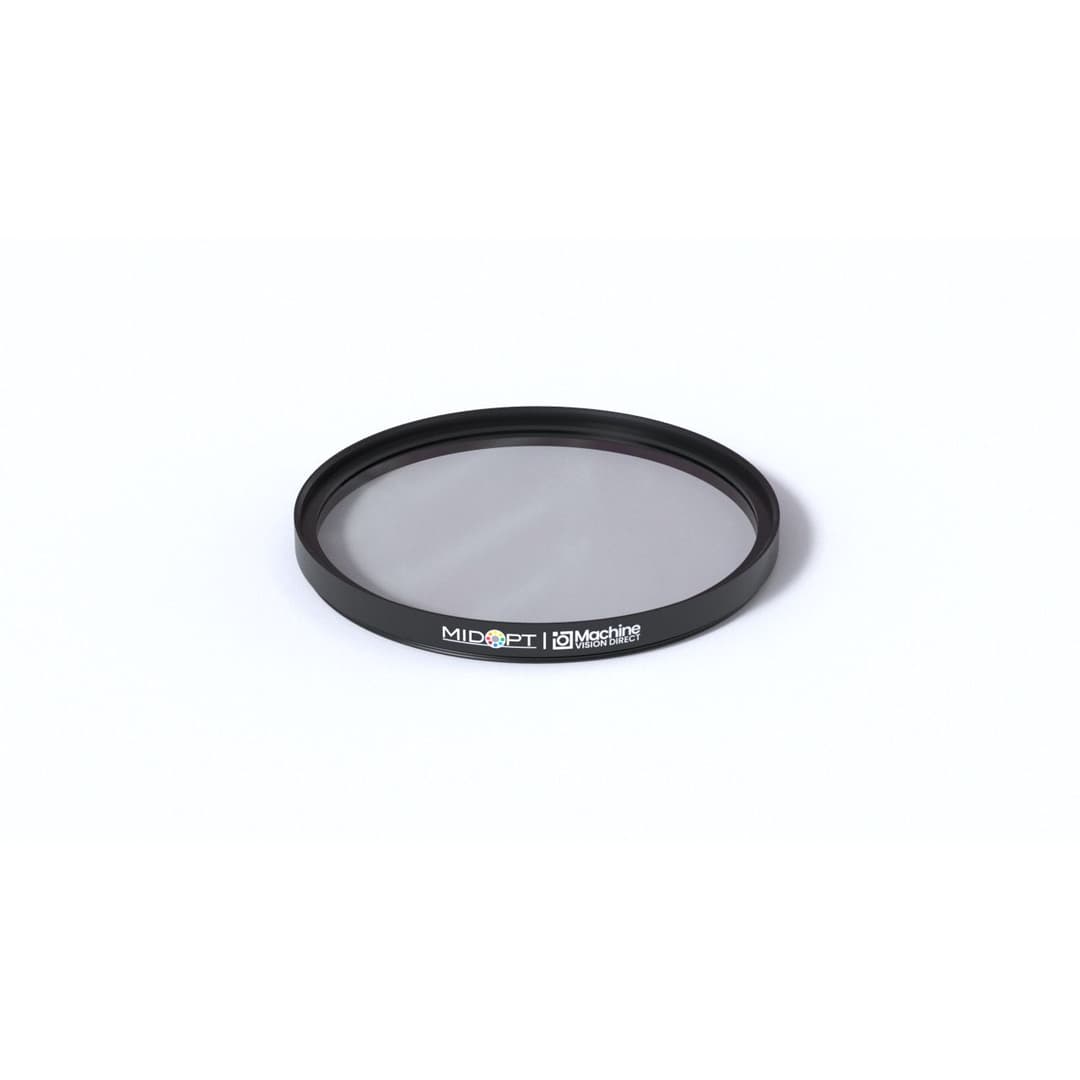

Ni060-72 | Ni060 Neutral Density Filter - Low Reflectivity 25% Transmission
Part: Ni060-72
Diameter: M72 x P0.75
The MidOpt Ni060-72 Ni060 filters are used to restrict visible and/or near-IR light, reducing the amount reaching the camera sensor, thus allowing for longer exposure times and reduced depth of field. This technique can improve the separation of subject matter from the background. Ni060 transmission is approximately 25% while reflected light averages about 20% over the 400-1100nm wavelength range. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Product Downloads
Download datasheets and CAD files.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 2000 nm |
| Stabledge | N/A |
| Adhesive Backed | Yes |
| Tolerance | 3 % |
| Surface Quality (Scratch-Dig) | 40-20 |
| Substrate Material | Clear Glass |
| Filter Diameter | M72 x P0.75 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Active |
| Price | $259 |
| Cost | $129.5 |
| Charge Tax | Yes |
