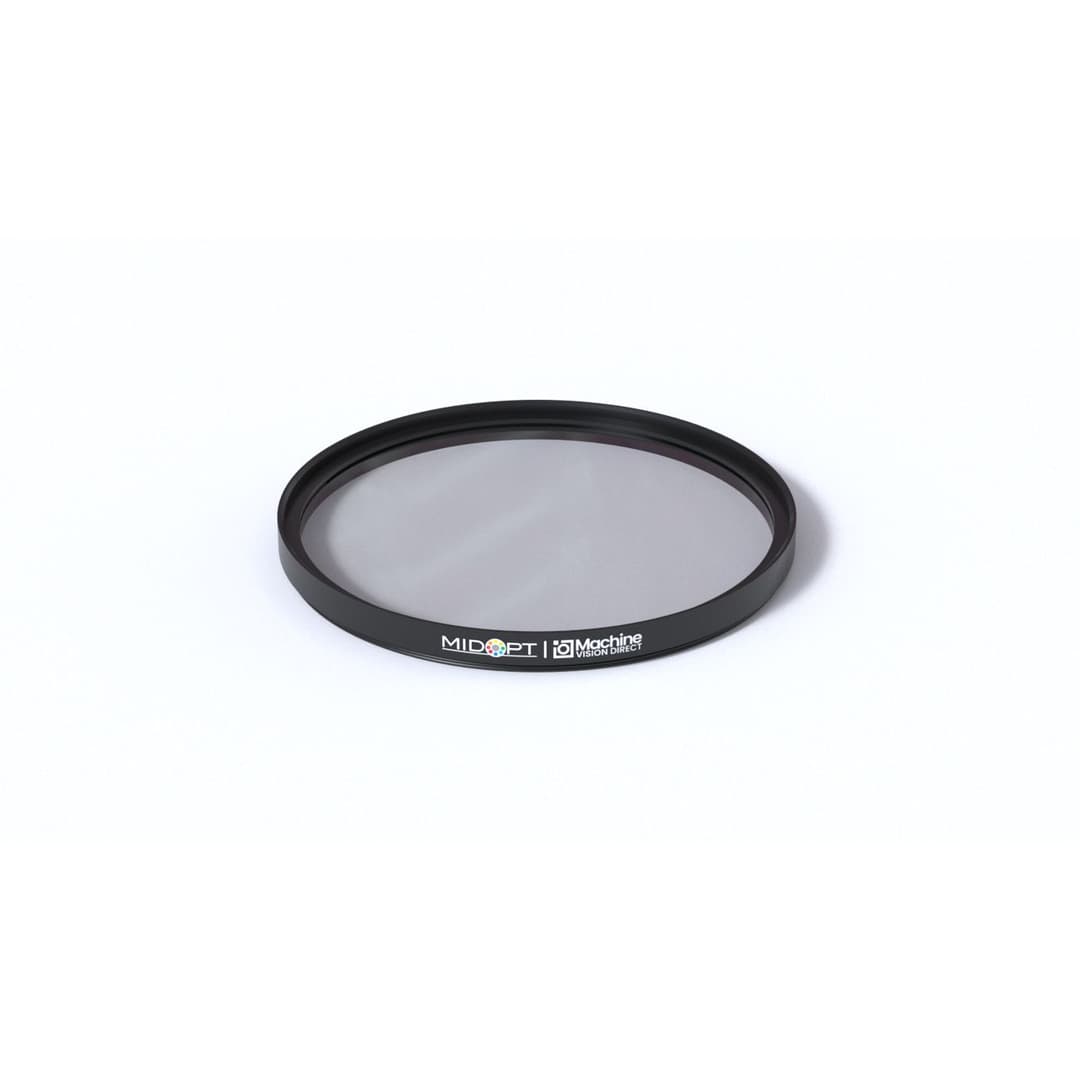

Ni120-77 | Ni120 Neutral Density Filter - Low Reflectivity 6.25% Transmission

Part: Ni120-77

Diameter: M77 x P0.75

The MidOpt Ni120-77 Ni120 Neutral density filters can be used to reduce the amount of light reaching the camera to about average 6.25% transmission, thus allowing longer exposure times that result in reduced depth of field. This improves the separation of subject matter from the foreground and/or background. These filters include identical male and female threads on either end so that they can be stacked with other ND filters to achieve various optical densities. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Product Downloads

Download datasheets and CAD files.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min400 nm
Useful Range Max2000 nm
StabledgeN/A
Adhesive BackedYes
Tolerance0.63 %
Surface Quality (Scratch-Dig)40-20
Substrate MaterialClear Glass
Filter DiameterM77 x P0.75

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Price$286
Cost$143
Charge TaxYes
