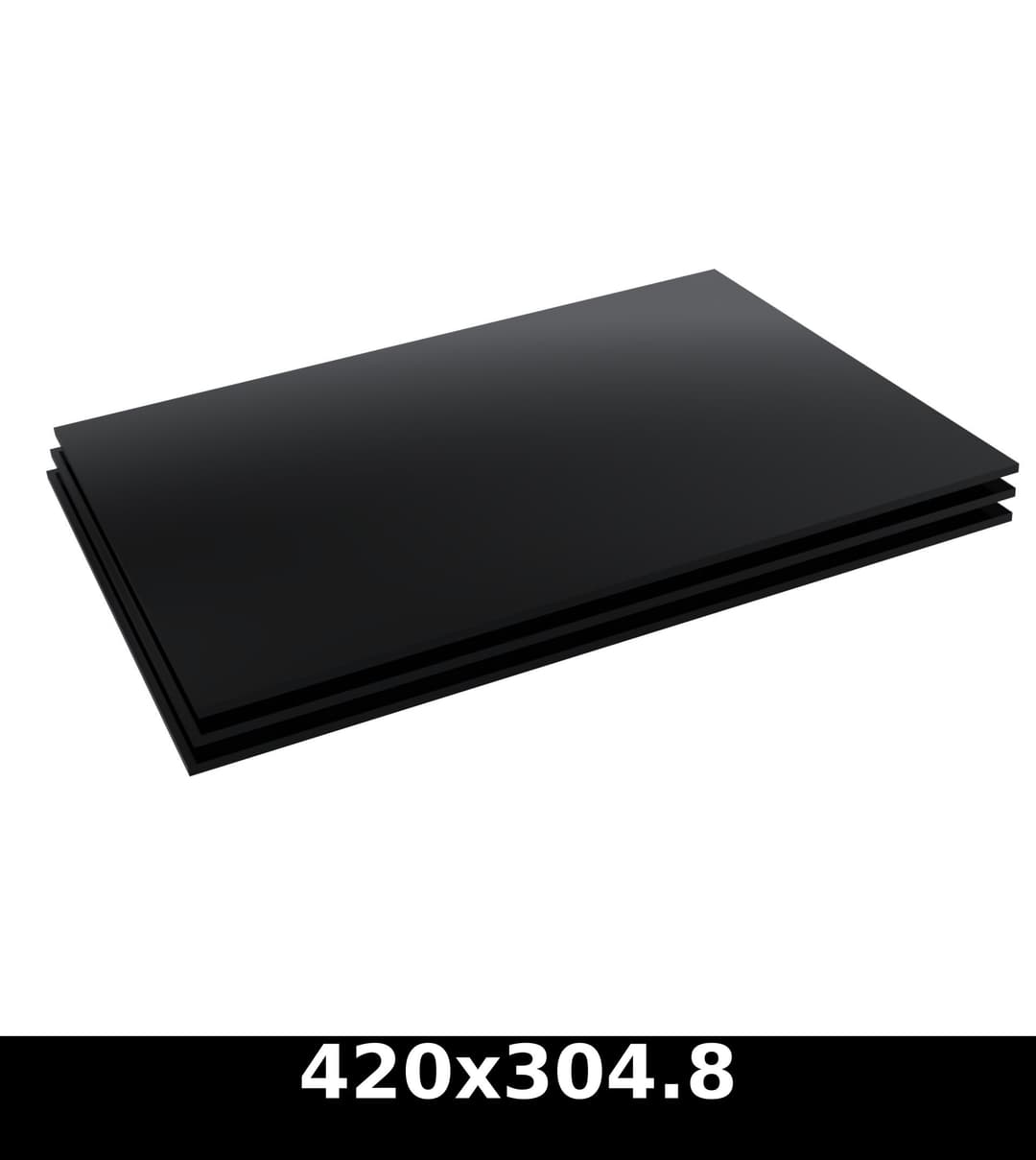

PA371-420x304.8 | PA371 Ultra-High Contrast Oleophobic Coated Acrylic Linear Polarizer

Part: PA371-420x304.8

Diameter: 420x304.8

The MidOpt PA371-420x304.8 is an economical polarizer that offers unmatched glare extinction and greater durability than polarizing films. They are laminated to a single piece of acrylic and intended for applications where the external surface must be exposed to potentially harsh conditions, while the internal surface is naturally protected. Appropriate examples include lighting applications, rotating polarizers threaded onto the front of lenses, and polarizers that are mounted in camera enclosures. PA371 sheet material is routinely laser cut to any desired custom shape, size, and mounting configuration. These polarizers utilize our HT008 polarizing film and are offered in 1.2mm thickness. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.

Accessories

No accessories available.

Technical Specifications

Specifications

Useful Range Min400 nm
Useful Range Max700 nm
StabledgeNo
Adhesive BackedYes
Surface Quality (Scratch-Dig)N/A
Substrate MaterialAcrylic
Filter Diameter420x304.8

Business Information

VendorMidwest Optical Systems
Standard Lead Time15 Days
Temporary Lead Time Change0 Days
Stock LocationBuilt to Order
Product LifecycleActive
Charge TaxYes
