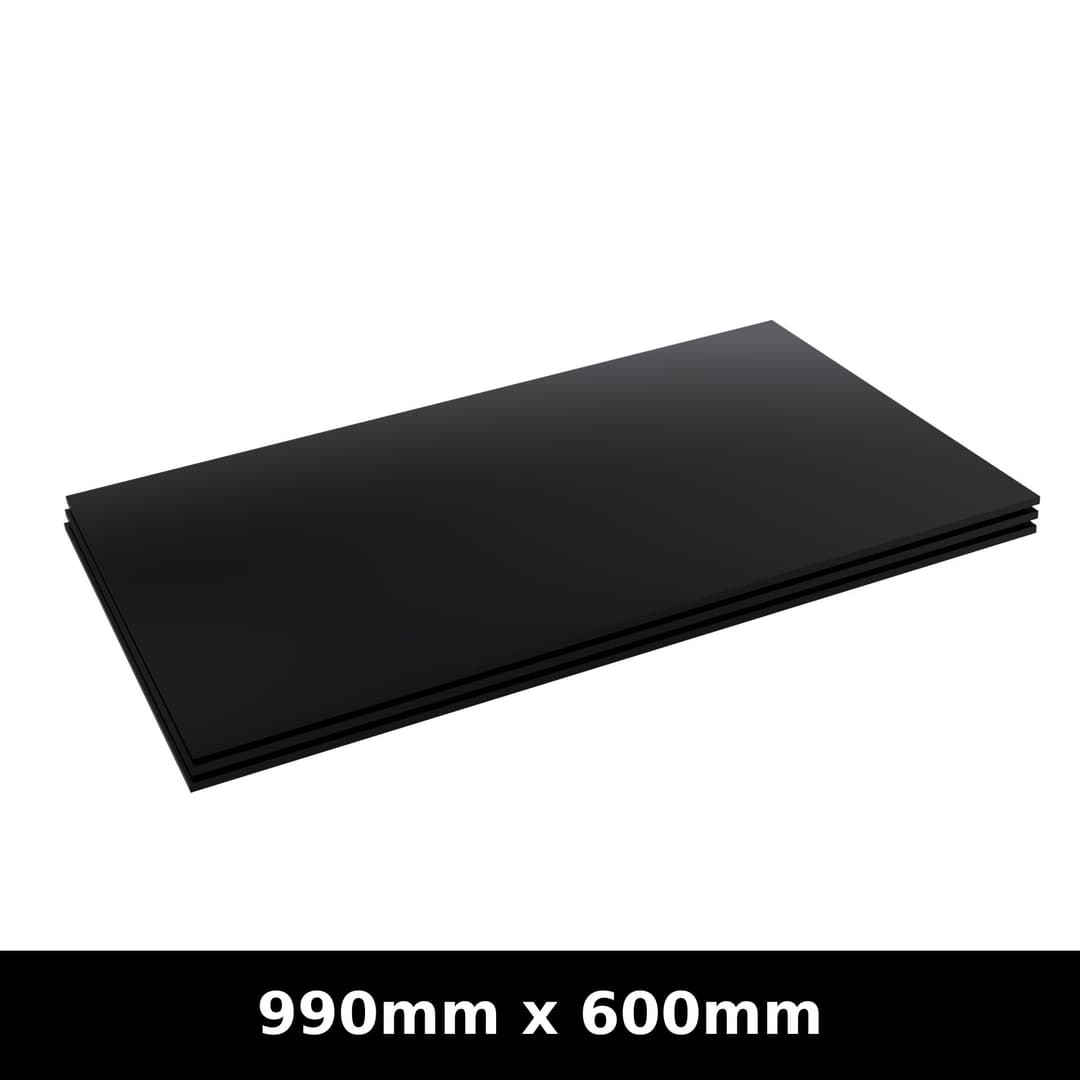

PA401-990x600 | PA401 Ultra-High Contrast Oleophobic Coated Acrylic Linear Polarizer
Part: PA401-990x600
Diameter: 990x600
The MidOpt PA401-990x600 These economical polarizers offer unmatched extinction of glare and greatly increased durability compared to polarizing films. They are laminated to a single piece of acrylic and are intended for applications where an external surface must be exposed to potentially harsh conditions, while the internal surface is naturally situated in a protected environment. Appropriate examples include lighting applications, rotating polarizers threaded onto the front of lenses, and polarizers that are mounted in camera enclosures. PA401 sheet material is routinely laser cut to any desired custom shape, size and mounting configuration. These polarizers utilize our HT008 polarizing film and are offered in 3.2mm thickness. All MidOpt filters can also be purchased unmounted and in custom dimensions upon request from Machine Vision Direct.
Accessories
No accessories available.
Technical Specifications
Specifications
| Useful Range Min | 400 nm |
| Useful Range Max | 700 nm |
| Stabledge | No |
| Adhesive Backed | Yes |
| Surface Quality (Scratch-Dig) | N/A |
| Substrate Material | Acrylic |
| Filter Diameter | 990x600 |
Business Information
| Vendor | Midwest Optical Systems |
| Standard Lead Time | 15 Days |
| Temporary Lead Time Change | 0 Days |
| Stock Location | Built to Order |
| Product Lifecycle | Discontinued |
| Charge Tax | Yes |
